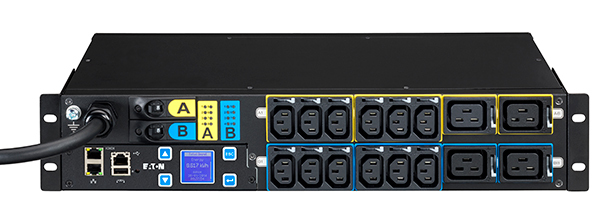

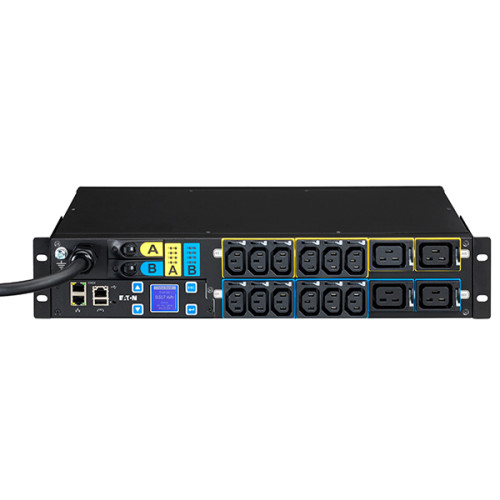

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU\nePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
PDU Types
- Managed
Form Factor
- Rackmount
Rack Capacity
- 2U
Firmware Upgradeable
- Yes
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Maximum Current
- 32 A
Maximum Power
- 7400 W
Nominal Input Voltage
- 230 V
Display
- LCD
Power Plug
- IEC 60309
Cable Colour
- Black
AC Outlets Quantity
- 16 AC outlet(s)
Serial Ports Quantity
- 1
Nominal Output Voltage
- 230 V
Output Connections
- 12 x C13 & 4 x C19
Maximum Input Current Per Phase
- 32 A
Firmware Upgradeable Via
- Network, USB
Operating temperature (T-T)
- 0 - 60 °C
Mounting
- Horizontal
Product Colour
- Black
Height
- 445 mm
Width
- 225 mm
Depth
- 87 mm
Weight
- 5.6 kg
Cable length
- 3 m
Package weight
- 7.8 kg
Cables included
- LAN (RJ-45)
LED indicators
- Yes
Rack Mounting
- Yes
Ethernet LAN (RJ-45) Ports
- 1
Compliance Certificates
- RoHS
Management Protocols
- SNMP, Telnet
AC Input Frequency
- 50 Hz
Brand
- Eaton
