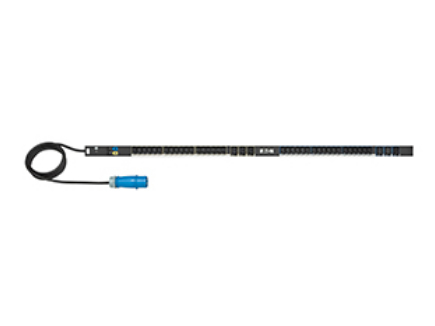

Designed for reliable and cost effective power distribution, the ePDU G3 Basic models feature Eaton’s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature. 0U models include both rear and side button mounting system and Eaton’s patented variable mounting system.
Nominal Input Voltage
- 230 V
AC Input Frequency
- 50 Hz
Form Factor
- Rackmount
Rack Capacity
- 0U
Firmware Upgradeable
- Yes
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Maximum Current
- 32 A
Maximum Power
- 7400 W
Management Protocols
- SNMP, Telnet
PDU Types
- Basic
Power Plug
- IEC 60309
Cable Colour
- Black
AC Outlets Quantity
- 42 AC outlet(s)
Nominal Output Voltage
- 230 V
Output Connections
- 36 x C13 & 6 x C19
Maximum Input Current Per Phase
- 32 A
Firmware Upgradeable Via
- Network, USB
Weight
- 4.1 kg
Mounting
- Vertical
Product colour
- Black
Package width
- 200 mm
Package depth
- 214 mm
Package height
- 1730 mm
Height
- 1604 mm
Width
- 52 mm
Depth
- 53 mm
Cable length
- 3 m
Operating temperature (T-T)
- 0 - 60 °C
Cables included
- LAN (RJ-45)
LED indicators
- Yes
Certification
- CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 61000-6-4:2007+A1:2011\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Rack Mounting
- Yes
Compliance Certificates
- RoHS
Brand
- Eaton
