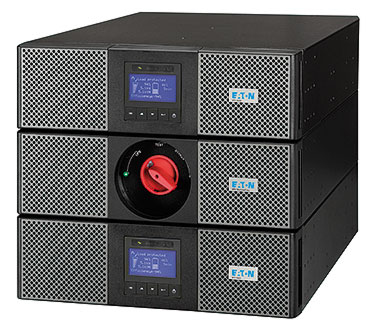

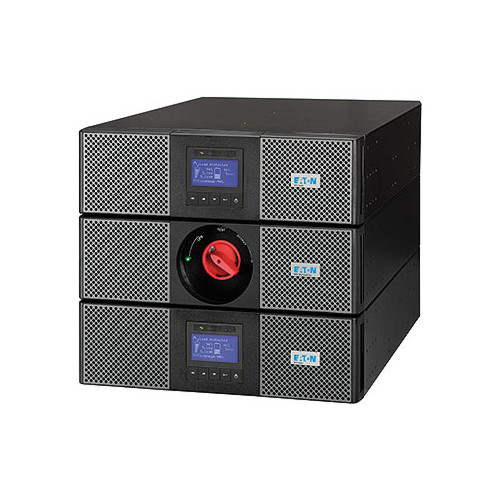

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
UPS Topology
- Double-conversion (Online)
AC Outlet Types
- Terminal
Nominal Input Voltage
- 230 V
Power Plug
- Terminal
AC Outlets Quantity
- 1 AC outlet(s)
Nominal Output Voltage
- 230 V
Output Power
- 20000 W
Number of Phases
- 1
Crest Factor
- 3:1
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
Rack Mount Kit
- Yes
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Hot-swap Battery
- Yes
Input Current Total Harmonic Distortion (THD)
- 5%
Number of Input Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 22 kVA
Automatic Battery Test
- Yes
Management Card Included
- Yes
Power Factor
- 0.9
Noise Level
- 50 dB
Product Colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 650 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 187 kg
USB port
- Yes
Package weight
- 214 kg
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Certification
- IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A (1:1 version), IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Safety
- IEC/EN 62040-1, UL 1778
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Form Factor
- Rackmount/Tower
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
Brand
- Eaton
