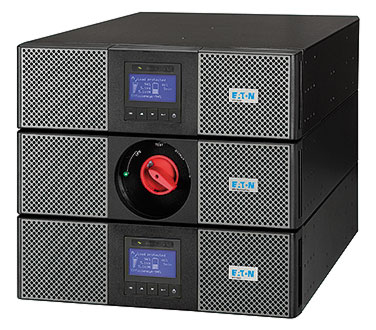

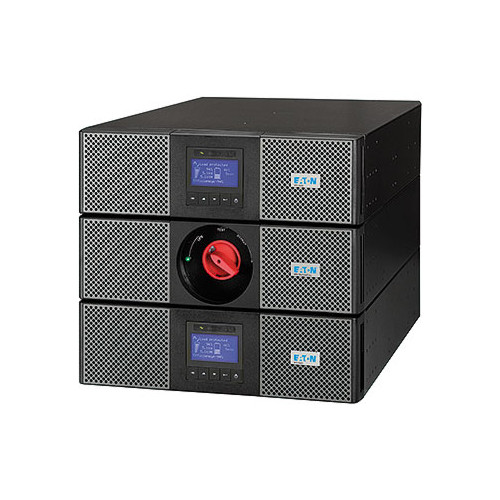

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Output Power
- 14400 W
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
Rack Mount Kit
- Yes
AC Outlet Types
- Terminal
Nominal Input Voltage
- 230 V
Power Plug
- Terminal
AC Outlets Quantity
- 1 AC outlet(s)
Nominal Output Voltage
- 230 V
Form Factor
- Rackmount/Tower
Number of Phases
- 1
Crest Factor
- 3:1
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
LED indicators
- Yes
Product colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 650 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 183 kg
USB port
- Yes
Package weight
- 210 kg
Operating temperature (T-T)
- 0 - 40 °C
Certification
- IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A (1:1 version), IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Noise Level
- 48 dB
Safety
- IEC/EN 62040-1, UL 1778
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Brand
- Eaton
