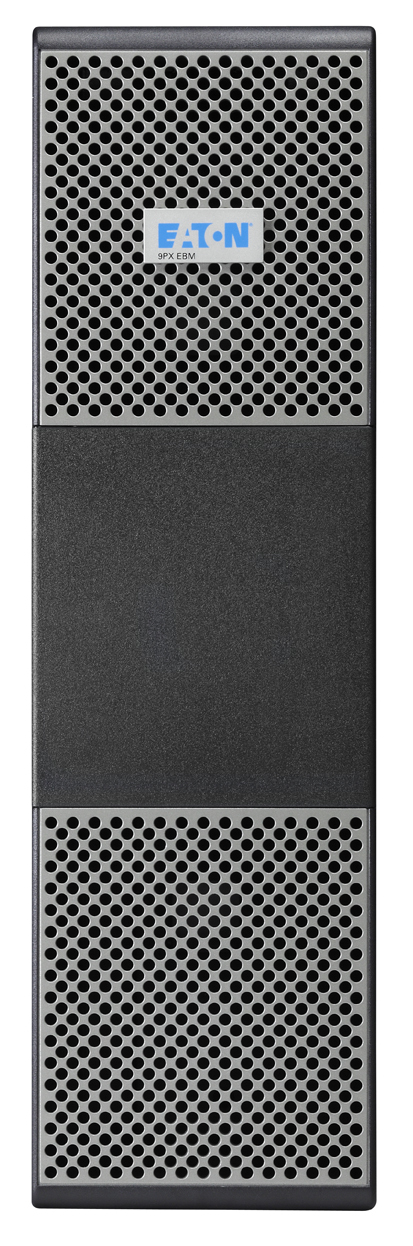

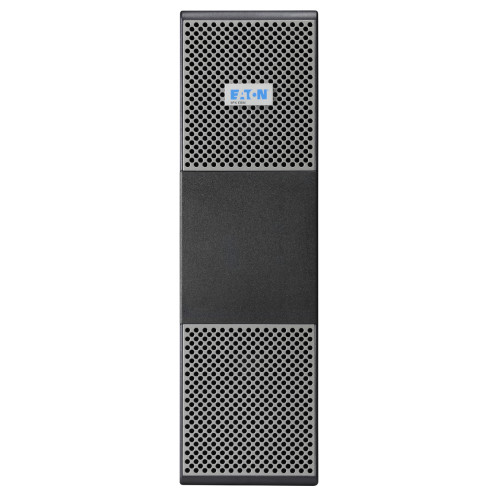

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Nominal Output Voltage
- 230 V
Rack Capacity
- 6U
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
AC Outlet Types
- Terminal
Nominal Input Voltage
- 230 V
Power Plug
- Terminal
AC Outlets Quantity
- 1 AC outlet(s)
Form Factor
- Rackmount/Tower
Output Power
- 10000 W
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
Typical Backup Time at Full Load
- 0 min
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
LED indicators
- Yes
Product colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 260 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 21 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Certification
- IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Noise Level
- 50 dB
Safety
- IEC/EN 62040-1, UL 1778
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Input Frequency
- 40/70 Hz
Brand
- Eaton
