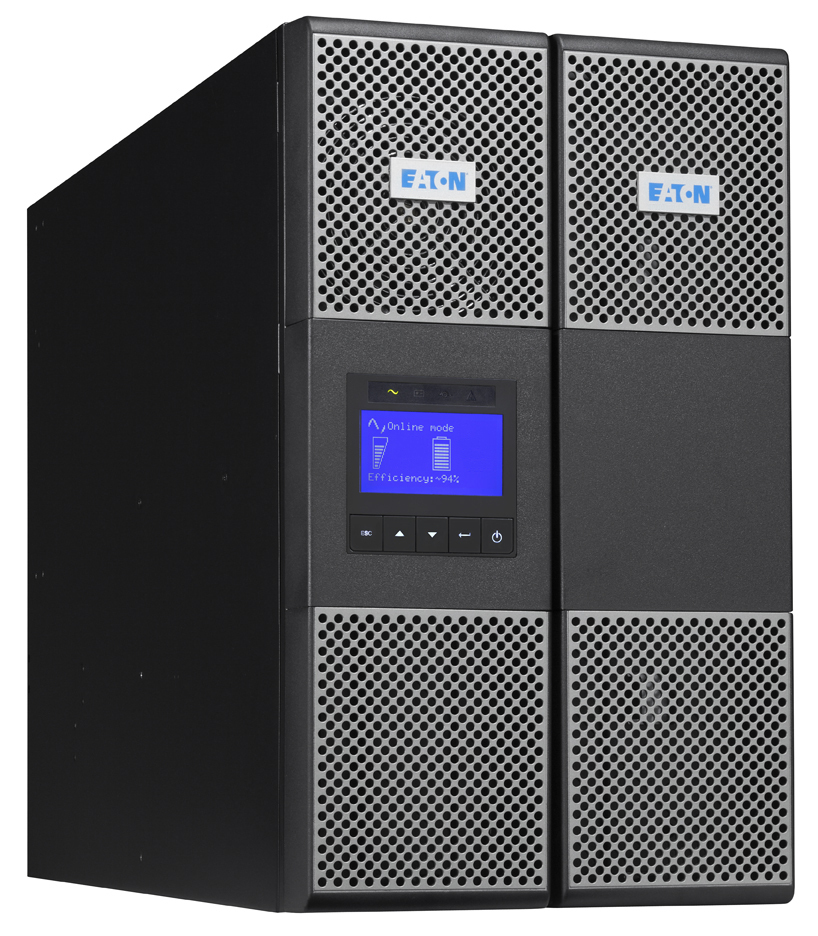

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.\n- Online double conversion topology\n- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)- Next-generation graphical LCD display (7 languages)- Provides more real power (watts) to protect more equipment with a 0.9 power factor\n- Parallel operation using HotSync technology (available in Q2 2013)- Maintenance ByPass available as standard (on HotSwap/BP version)- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite\n- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Output Operation Voltage (Max)
- 240 V
AC Outlet Types
- C19 coupler, Terminal
Nominal Input Voltage
- 230 V
Power Plug
- Terminal
AC Outlets Quantity
- 5 AC outlet(s)
Nominal Output Voltage
- 230 V
Output Power
- 7200 W
Crest Factor
- 3:1
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
UPS Topology
- Double-conversion (Online)
Waveform
- Pure sine
Output Operation Voltage (Min)
- 200 V
Hot-swap Battery
- Yes
Input Current Total Harmonic Distortion (THD)
- 5%
Number of Input Phases
- 1
Output Frequency
- 50/60 Hz
Typical Backup Time at Half Load
- 20 min
Output Power Capacity
- 8 kVA
Automatic Battery Test
- Yes
Management Card Included
- No
Power Factor
- 0.9
Noise Level
- 48 dB
Product Colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 260 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 84 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Certification
- IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Safety
- IEC/EN 62040-1, UL 1778
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Form Factor
- Rackmount/Tower
Rack Capacity
- 6U
Display Type
- LCD
RS-232 Ports
- 1
Brand
- Eaton
