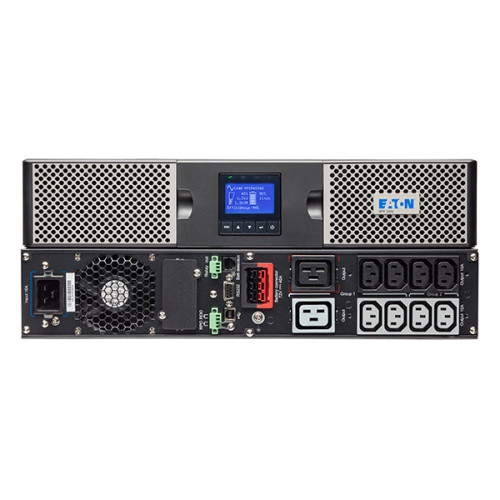

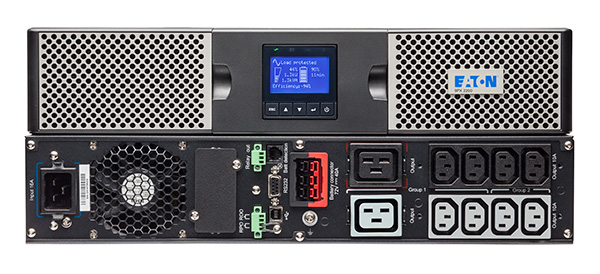

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Serial Interface
- Yes
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 10 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 3000 W
Power Protection Features
- Overdischarge
Battery Voltage
- 12 V
Efficiency
- 94%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Waveform
- Sine
Typical Backup Time at Full Load
- 3 min
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Efficiency (On-Line Mode)
- 98%
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 3 kVA
Automatic Battery Test
- Yes
Input Power Factor
- 0.99
Power Factor
- 1
Noise Level
- 40 dB
Product Colour
- Black, Silver
Height
- 290 mm
Width
- 580 mm
Depth
- 770 mm
Weight
- 26.3 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, USB cable
Operating altitude
- 0 - 3000 m
Certification
- IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 9 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Quick Installation Guide
- Yes
Display Type
- LCD
Brand
- Eaton
