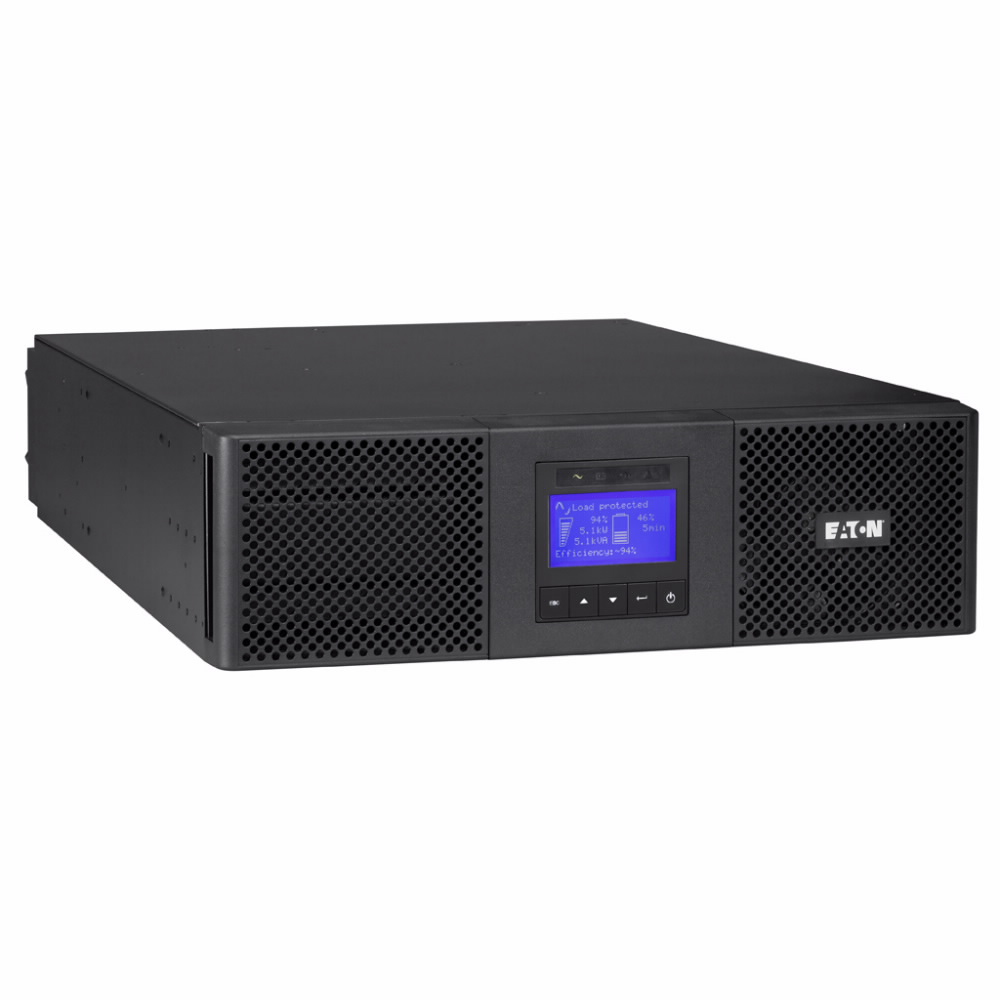

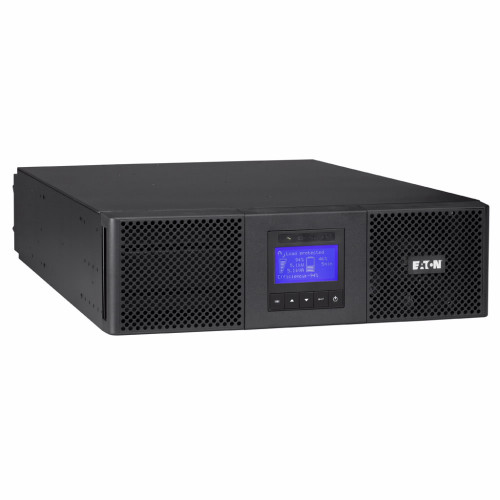

Eaton 9SX11KiPM. UPS topology: Double-conversion (Online), Output power capacity: 11 kVA, Output power: 10000 W. Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE cULus, EAC
Efficiency
- 95%
Form Factor
- Rackmount/Tower
Rack Capacity
- 3U
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Sine
Number of Batteries Supported
- 12
Output Power
- 10000 W
ECO Mode
- Yes
Serial Interface Type
- RS-232
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Serial Interface
- Yes
Efficiency (ECO Mode)
- 98%
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 250 V
Output Operation Voltage (Min)
- 200 V
Input Frequency
- 40/70 Hz
Battery Technology
- Sealed Lead Acid (VRLA)
USB 2.0 Ports Quantity
- 1
Noise Level
- 50 dB
Certification
- IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE cULus, EAC
Operating altitude
- 0 - 3000 m
Cables included
- Serial, USB cable
Operating relative humidity (H-H)
- 0 - 95%
Operating temperature (T-T)
- 0 - 40 °C
USB port
- Yes
Weight
- 21 kg
Depth
- 700 mm
Width
- 130 mm
Height
- 440 mm
Product Colour
- Black
Brand
- Eaton
