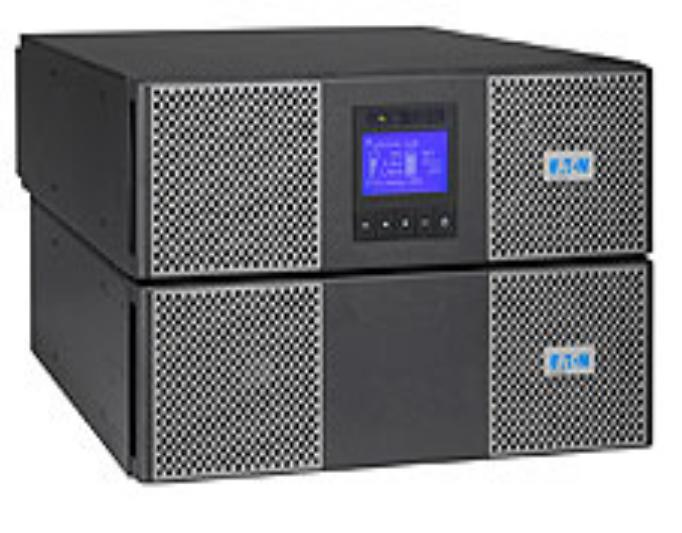

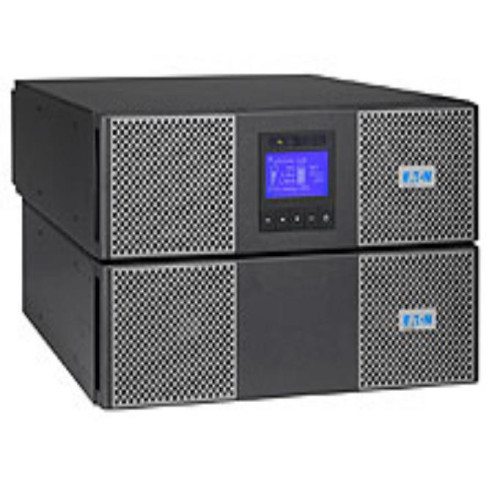

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Output Power
- 7200 W
RS-232 Ports
- 1
Waveform
- Pure sine
Rack Mount Kit
- Yes
AC Outlet Types
- C19 coupler, Terminal
Nominal Input Voltage
- 400 V
Power Plug
- Terminal
AC Outlets Quantity
- 5 AC outlet(s)
Serial Ports Quantity
- 1
Nominal Output Voltage
- 230 V
Display Type
- LCD
Cooling Type
- Active
Built-in Fan
- Yes
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 480 V
Input Operation Voltage (Min)
- 305 V
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Certification
- IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Product colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 260 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 88 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Noise Level
- 48 dB
Safety
- IEC/EN 62040-1
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Input Frequency
- 40/70 Hz
Form Factor
- Rackmount/Tower
Rack Capacity
- 6U
Brand
- Eaton
