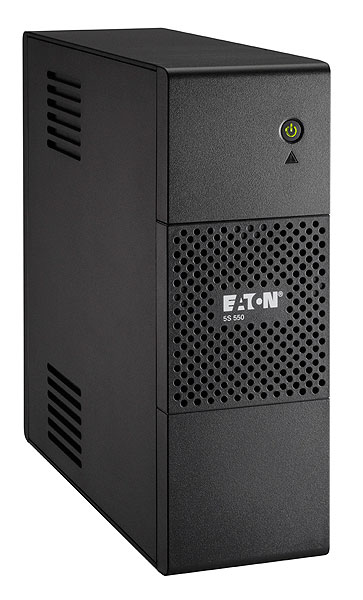

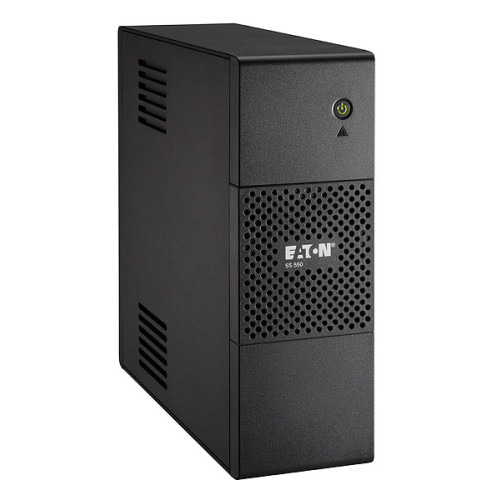

Eaton 5S550IBS. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 EAC
Power Protection Features
- Overdischarge
USB Port Type
- USB Type-B
Waveform
- Sine
AC Outlet Types
- C13 coupler
Power Plug
- C14 coupler
AC Outlets Quantity
- 4 AC outlet(s)
Surge Protection
- Yes
Number of Batteries Supported
- 1
Output Power
- 600 W
Form Factor
- Tower
Battery Voltage
- 12 V
Efficiency
- 97%
Input Operation Voltage (Max)
- 275 V
Input Operation Voltage (Min)
- 175 V
Typical Backup Time at Full Load
- 1 min
UPS Topology
- Line-Interactive
Output Operation Voltage (Max)
- 276 V
Output Operation Voltage (Min)
- 184 V
Operating altitude
- 0 - 2000 m
Product Colour
- Black, Silver
Height
- 250 mm
Width
- 260 mm
Depth
- 87 mm
Weight
- 5.9 kg
USB port
- Yes
Cables included
- Input power cable, USB cable
LED indicators
- Yes
Certification
- IEC/EN 62040-1 IEC/EN 62040-2 EAC
Noise Level
- 25 dB
Compliance Certificates
- CE
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 5 Ah
Input Frequency
- 46/70 Hz
Brand
- Eaton
