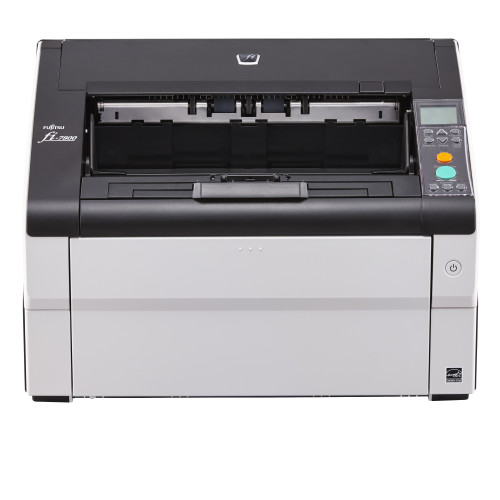

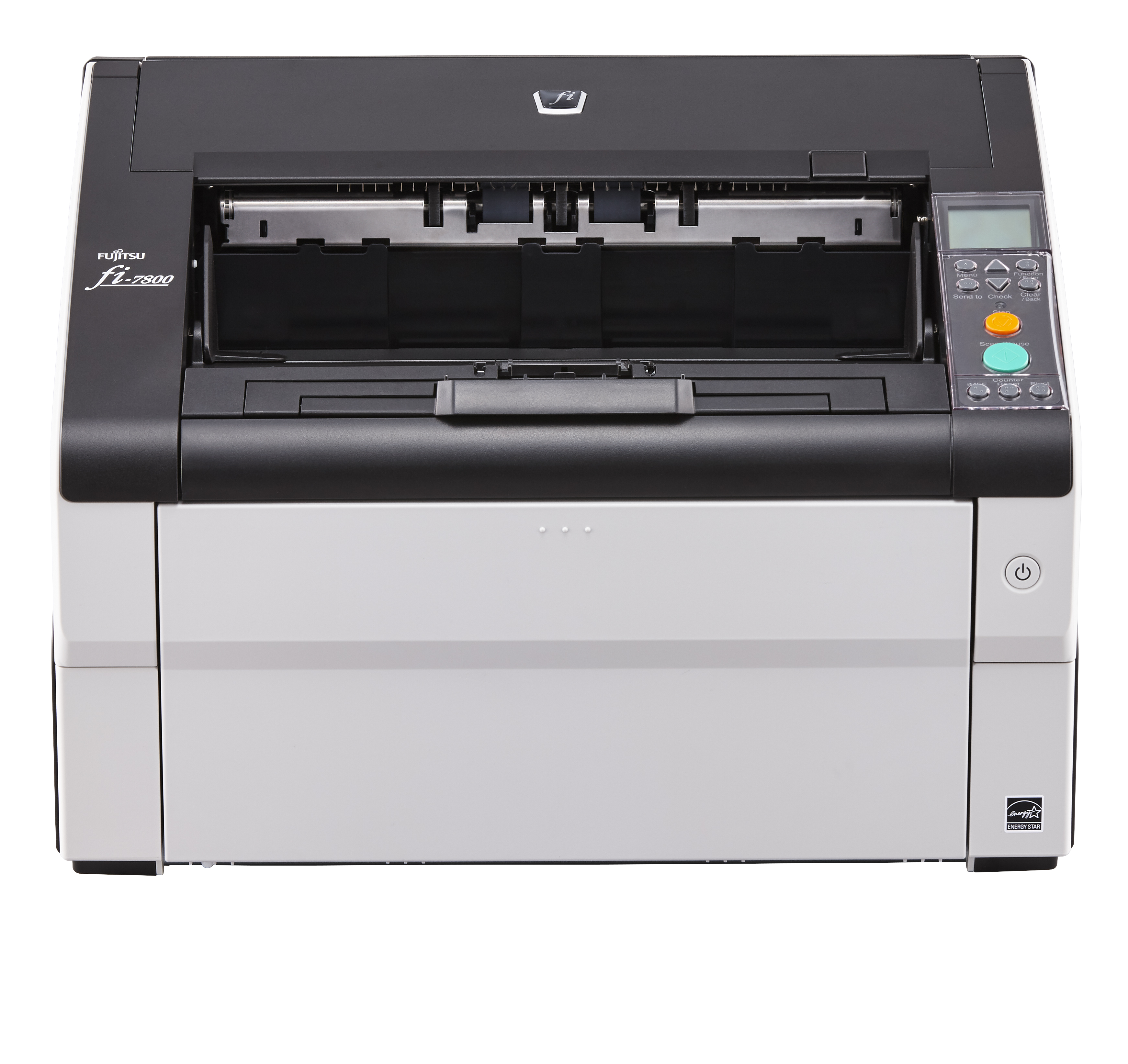

The fi-7800 achieves scanning speeds of 110 ppm/220 ipm (A4 landscape, color, 200/300 dpi), is capable of scanning up to as many as 100,000 sheets a day, and is highly optimized for centralized scanning.\nThe scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.
Output Greyscale Depth
- 8 bit
Compliance Certificates
- RoHS
Bundled Software
- PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, Scanner Central Admin
Drivers Included
- Yes
Warranty Card
- Yes
PC Connection
- USB 2.0
Sustainability Certificates
- ENERGY STAR
Black/White Scanning Colour Modes
- Grayscale, Monochrome
Sensor Type
- Dual CCD
Daily Duty Cycle (max)
- 100000 pages
Light Source
- White LED (4x)
Scan File Formats
- BMP, JPEG, PDF, TIFF
Long-Paper Mode
- Yes
USB Connector Type
- USB Type-B
Standard Interfaces
- USB 2.0
Cables included
- AC, USB
Legal
- Yes
Sleep Mode
- Yes
Output Monochrome Depth
- 1 bit
Minimum Scan Area (ADF)
- 52 x 74 mm
Letter
- Yes
Multi Feed Detection
- Yes
Selectable Background Colour
- Yes
Background Colours
- Black, White
ISO B-Series Sizes (B0...B9)
- B5, B6
Software CD
- Yes
ISO A-series sizes (A0...A9)
- A3, A4, A5, A6
Ultrasonic Double Sheet Detection
- Yes
Maximum Scan Area (ADF)
- 304.8 x 431.8 mm
Scanner Error Detection
- Yes
Scan drivers
- ISIS, TWAIN, WIA
Product Colour
- Black, Grey
Country of origin
- Japan
Harmonized System (HS) code
- 84716070
Height
- 310 mm
Width
- 460 mm
Depth
- 430 mm
Weight
- 32 kg
Maximum scan size
- 304.8 x 5588 mm
Optical scanning resolution
- 600 x 600 DPI
Duplex scanning
- Yes
Colour scanning
- Yes
Output colour depth
- 24 bit
Scanner type
- ADF + Manual feed scanner
Built-in display
- Yes
Auto document feeder (ADF) input capacity
- 500 sheets
Maximum ISO A-series paper size
- A3
Auto Document Feeder (ADF) media weight
- 20 - 209 g/m²
Maximum scan length
- 5.59 m
USB port
- Yes
USB version
- 2.0
Power supply type
- AC
Power consumption (typical)
- 200 W
Power consumption (off)
- 0.3 W
Power consumption (sleep)
- 3.2 W
Windows operating systems supported
- Windows 10, Windows 10 x64, Windows 7
Operating temperature (T-T)
- 5 - 35 °C
Operating relative humidity (H-H)
- 20 - 80%
Brand
- Fujitsu
