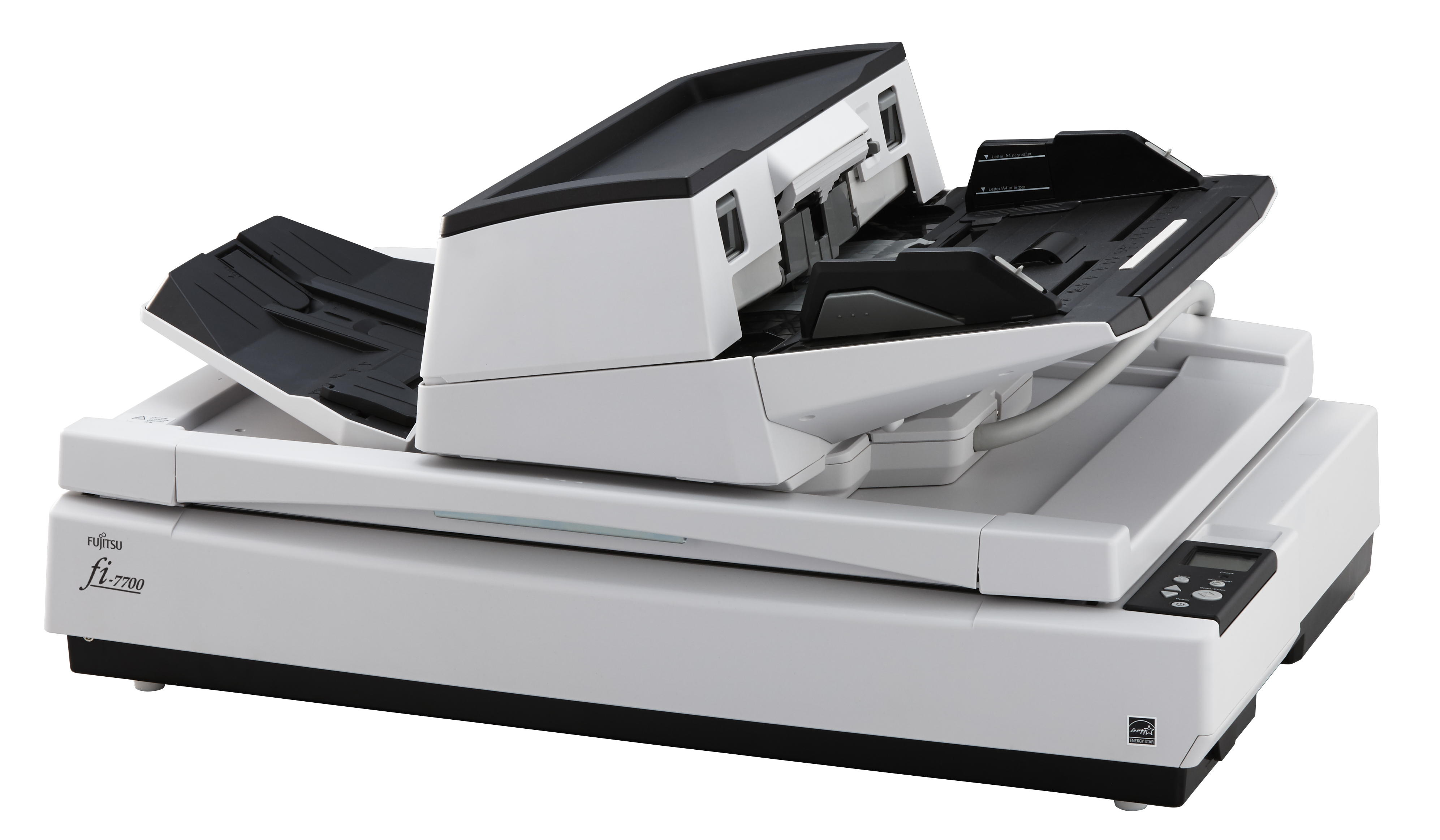

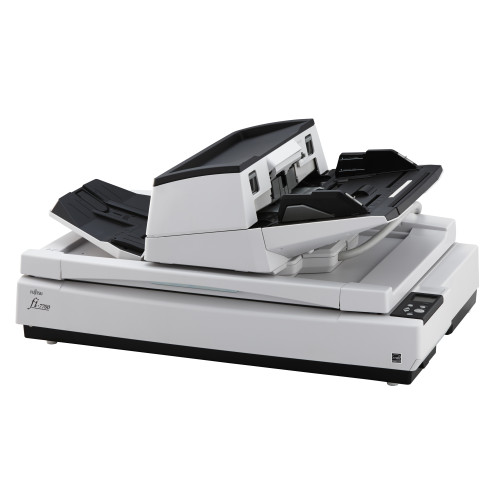

Ricoh fi-7700S, Heavy-duty & flexible production scanner for professional use\n\n- Instant processing performance at 75 ppm (A4, landscape, colour, 200/300 dpi)- Mixed batch scanning – A8 to A3 from 20-413 g/m²\n- Folded documents up to A1 and longer\n- 300 sheet ADF, rotatable ADF and flatbed\n- 30,000 document daily duty cycle\n- Paper Protect function which protects jam by detecting abnormalities in sound (iSOP: Intelligent Sonic Paper\n- Protection) and document length\n- Flexible design and LCD panel for easy operation\n- Independent Side Guides for easily aligning mixed size document\n- Comes with PaperStream IP (TWAIN/ISIS) and PaperStream Capture; Ricoh developed scanner driver and\n- Image enhancement plus batch capture software application.\nFlexible – durable – high volume scanning\nWith scanning speeds of 75 ppm (200/300 dpi), the fi-7700S greatly improves process efficiency. Large volumes of information can be captured from various media, including thin paper, plastic cards, envelopes and long page documents.\nSmooth paper flow\nThe fi-7700S automatically adjusts to paper weights from 20-413 g/m². The straight paper path reduces the load on a document and assures reliable scanning regardless of the condition and type of a document. By simply sliding a lever to non-separation mode, you can easily scan thick and long documents folded in half, multi-layered document sets and envelopes.\nInnovative paper feeding mechanisms\nSkew Reducer automatically handles sheets of paper in a stack individually, so that if one sheet is fed-in skewed, subsequent sheets are not forced into physical skew. This ensures that all information in the documents is captured correctly, even in batches with mixed document formats.\nThe Paper Protection function monitors document movement and automatically stops feeding when any irregularities are detected.\nForm follows function\nThe fi-7700S’s ADF unit slides to either side or rotates by 180 degrees. The LCD on the operation panel reveals the scanner status at a glance and enables instant operation. \nLower workload before and after scanning\nThe Automatic Document Feeder’s (ADF) independent side guides move to exactly the position required for each batch. The adjustable stacker side guides support neat alignment of processed documents. The fi-7700S flatbed consecutively scans thick, fragile or bound documents even with the document cover open.\nPaperStream IP and PaperStream Capture\nThe fi-7700S comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.\nService and Support\nA one year Advance Exchange is offered as a standard warranty and this includes online support along with parts/labour and shipping costs. Advance Exchange involves the delivery of a refurbished scanner which replaces the faulty scanner.\nService upgrades are available that extends the warranty period to 3 years and additionally offers the possibility for items like onsite service with impressive response and repair times, accidental damage cover and remote desktop support.
  Power Consumption (PowerSave)
 - 1.7 W
 Cables included
 - AC, USB
 Compliance Certificates
 - RoHS
 Display
 - LCD
 Bundled Software
 - PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools
 Drivers Included
 - Yes
 AC Adapter Included
 - Yes
 Sustainability Certificates
 - ENERGY STAR
 Black/White Scanning Colour Modes
 - Grayscale, Monochrome
 Sensor Type
 - CCD
 Daily Duty Cycle (max)
 - 30000 pages
 Light Source
 - White LED
 Standard Interfaces
 - USB 3.2 Gen 1 (3.1 Gen 1)
 Input Voltage
 - 100-240 V
 Output Greyscale Depth
 - 8 bit
 Operating relative humidity (H-H)
 - 20 - 80%
 Output Monochrome Depth
 - 1 bit
 Minimum Scan Area (ADF)
 - 50.8 x 69 mm
 Multi Feed Detection
 - Yes
 Stacker
 - Yes
 Selectable Background Colour
 - Yes
 ADF Paper Chute
 - Yes
 Downloadable Software
 - ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode
 Background Colours
 - Black, White
 Flatbed Scan Speed (B/W, A3)
 - 0.6 sec/page
 ADF Scan Speed (B/W, A3)
 - 75 ppm
 ISO A-series sizes (A0...A9)
 - A3, A3+, A4, A5, A6, A7, A8
 Maximum Scan Area (ADF)
 - 304.8 x 431.8 mm
 Flatbed Scan Speed (B/W, A4)
 - 0.6 sec/page
 Built-in display
 - Yes
 Product Colour
 - Black, White
 Harmonized System (HS) code
 - 84716070
 Height
 - 345 mm
 Width
 - 706 mm
 Depth
 - 500 mm
 Weight
 - 35 kg
 Maximum scan size
 - 304.8 x 5588 mm
 Optical scanning resolution
 - 600 x 600 DPI
 Duplex scanning
 - No
 Colour scanning
 - Yes
 Output colour depth
 - 24 bit
 ADF scan speed (b/w, A4)
 - 75 ppm
 ADF scan speed (colour, A4)
 - 75 ppm
 Scanner type
 - Flatbed & ADF scanner
 Scan drivers
 - ISIS, TWAIN
 Auto document feeder (ADF) input capacity
 - 300 sheets
 Maximum ISO A-series paper size
 - A3
 Scanning media types supported
 - Envelopes, Plain paper, Plastic Card, Thin paper
 Auto Document Feeder (ADF) media weight
 - 20 - 413 g/m²
 USB port
 - Yes
 USB version
 - 3.2 Gen 2 (3.1 Gen 2)
 Power supply type
 - AC
 Power consumption (typical)
 - 64 W
 Power consumption (standby)
 - 0.35 W
 Power consumption (off)
 - 0.35 W
 Server operating systems supported
 - Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
 Operating temperature (T-T)
 - 5 - 35 °C
 Brand
 - Fujitsu
