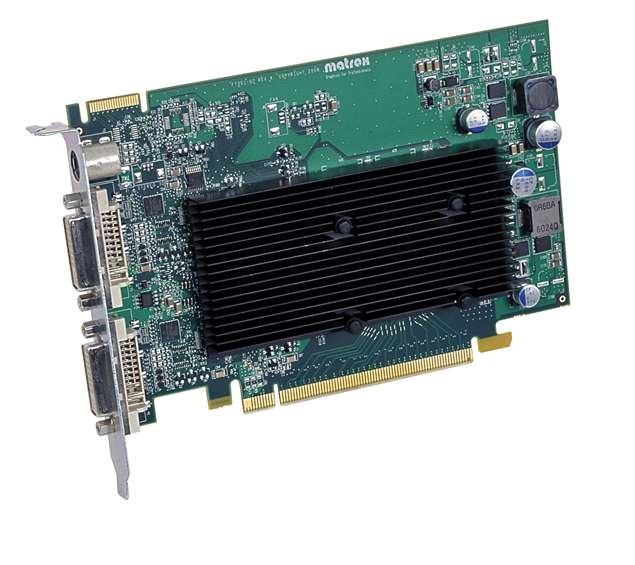

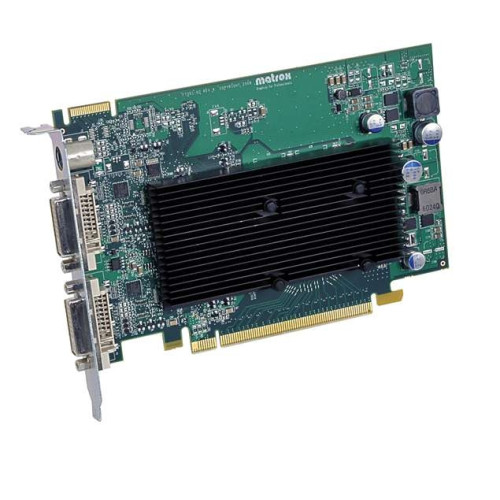

The Matrox M9120 PCIe x16 ATX graphics card renders pristine image quality with dual monitor support at resolutions up to 1920x1200 (digital), or 2048x1536 (analog) for an exceptional multi-display user experience. Armed with 512MB of graphics memory and advanced desktop management, the M9120 drives business, government, and industrial applications with extraordinary performance on two high-resolution monitors in both independent and stretched desktop modes. It offers optimal Windows Vista Aero support (WDDM mode), and can be paired with a second Matrox M-Series graphics card if additional outputs are required.\nHigh-resolution dual monitor support\n Up to 1920 x 1200 digital; 2048 x 1536 analog per output\n Native PCI express x16 performance\n Maximum bandwidth to ensure best performance\n 512 MB of memory\n For enhanced performance in demanding multi-monitor applications\n ATX form factor\n Optimal support for Windows® Vista\n Aero (WDDM mode), XP, among other OS platforms\n Passive cooling and low power consumption\n Fanless design eliminates noise and increases product reliability\n Joined graphics card mode\n Allows for use of an additional Matrox M-Series graphics card, to increase total monitor support\n Wide enterprise flexibility\n Unified driver package compatible with other Matrox products\n Matrox PowerDesk software\n Easily configure and manage program windows on multiple monitors\n Global sales and technical support\nHardware Included\n Matrox M9120 PCIe x16 graphics card (with factory-installed ATX bracket) Two DVI-I-to-HD15 connector adapters\nSoftware Included\n Matrox display drivers for Microsoft Windows Vista and XP\n Matrox PowerDesk desktop management software
OpenGL Version
- 2.0
Video In
- N
Maximum Analog Resolution
- 2 x 2048 pixels
DVI-D Ports Quantity
- 2
TV Tuner Integrated
- No
DVI Ports Quantity
- 2
Cooling Type
- Passive
DirectX Version
- No
Graphics Card Memory Type
- GDDR2
Graphics Processor Family
- Matrox
Interface Type
- PCI Express x16
PhysX
- No
Bracket Height
- Full-Height (FH)
CUDA
- No
Dual DVO
- Yes
Dual VGA
- Yes
Graphics Card Family
- Matrox
Maximum Displays per Videocard
- 2
Memory Bus
- 128 bit
Parallel Processing Technology Support
- Not supported
Bundled Software
- Matrox PowerDesk display driver & desktop management software
Harmonized System (HS) code
- 84733020
Height
- 111 mm
Depth
- 19 mm
Mac operating systems supported
- No
Linux operating systems supported
- Yes
Server operating systems supported
- Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Certification
- EMC Certifications: Class B ROHS & WEEE compliant
Maximum Resolution
- 2048 x 1536 pixels
Mac Compatibility
- No
Length
- 168 mm
VGA (D-Sub) Ports Quantity
- 2
Full HD
- Yes
Form Factor
- Full-Height/Full-Length (FH/FL)
HDMI
- No
Maximum Digital Resolution
- 2 x 1920 pixels
Compatible Operating Systems
- Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit)*, Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit)*, See website for details Linux (www.matrox.com/graphics/en/products/graphics_cards/m_series/linux_distributions.html)
DVI-I Ports Quantity
- 2
Dual Link DVI
- Yes
Brand
- Matrox Video
