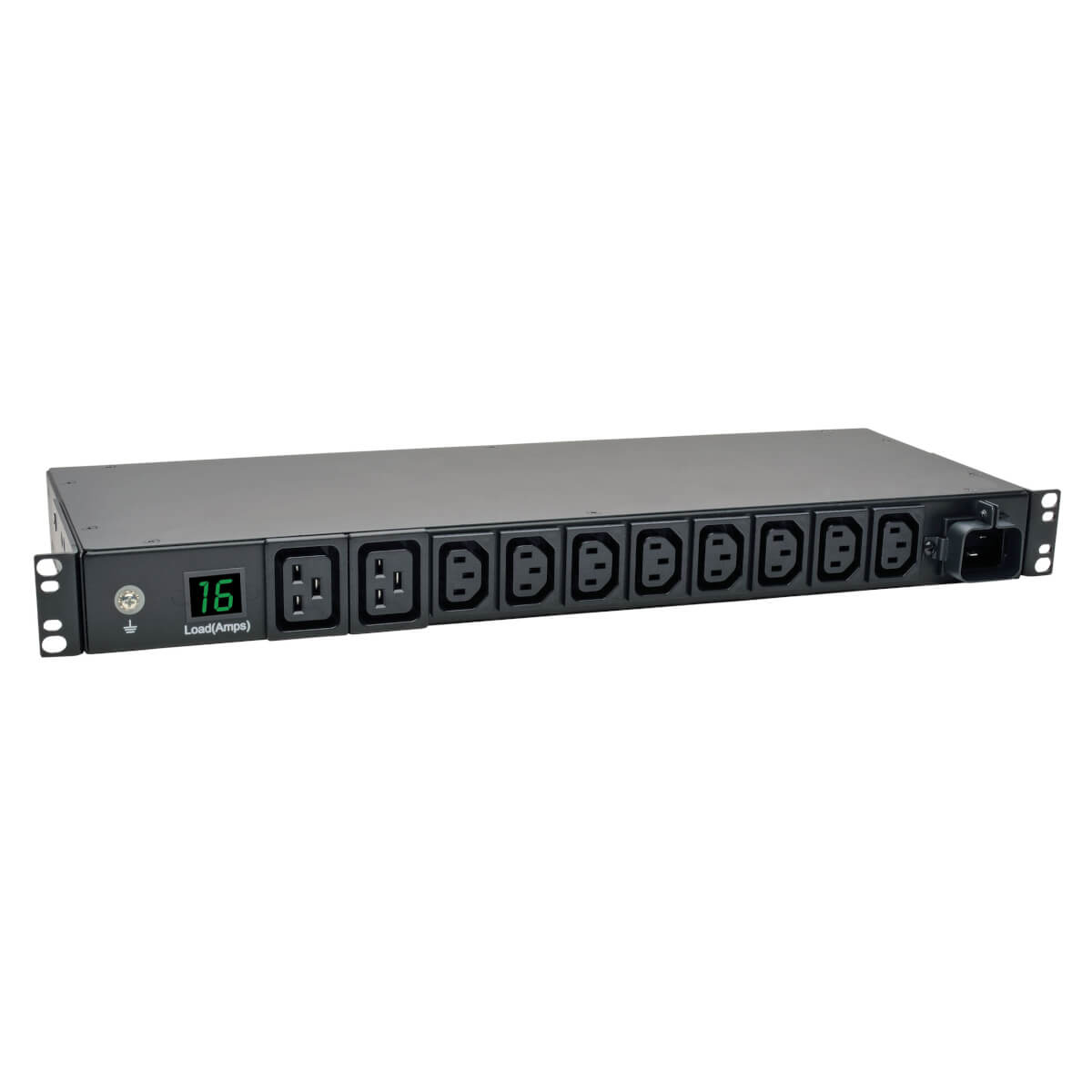

3.7kW 16A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU)
Built-in 2 digit visual meter continuously reports PDU load level in amps
C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
1U horizontal rackmount format installs in one rack space
10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front panel grounding lug
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Built-in 2 digit visual meter continuously reports PDU load level in amps
C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
1U horizontal rackmount format installs in one rack space
10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front panel grounding lug
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Operating temperature (T-T)
- -15 - 50 °C
Nominal Output Voltage
- 200-240 V
AC Outlets Quantity
- 10 AC outlet(s)
Power Plug
- IEC309
PDU Types
- Metered
Nominal Input Voltage
- 200-240 V
Maximum Current
- 16 A
AC Outlet Types
- C13 coupler, C19 coupler
Rack Capacity
- 1U
Display
- LCD
Compliance Certificates
- RoHS
Operating altitude
- 0 - 3000 m
LED indicators
- Yes
Operating relative humidity (H-H)
- 5 - 95%
Package weight
- 2.95 kg
Cable length
- 2.5 m
Weight
- 1.77 kg
Depth
- 165 mm
Width
- 444 mm
Height
- 28.7 mm
Country of origin
- Taiwan
Package height
- 76 mm
Package depth
- 279 mm
Housing material
- Metal
Product Colour
- Black
Mounting
- Horizontal
Brand
- Tripp Lite
