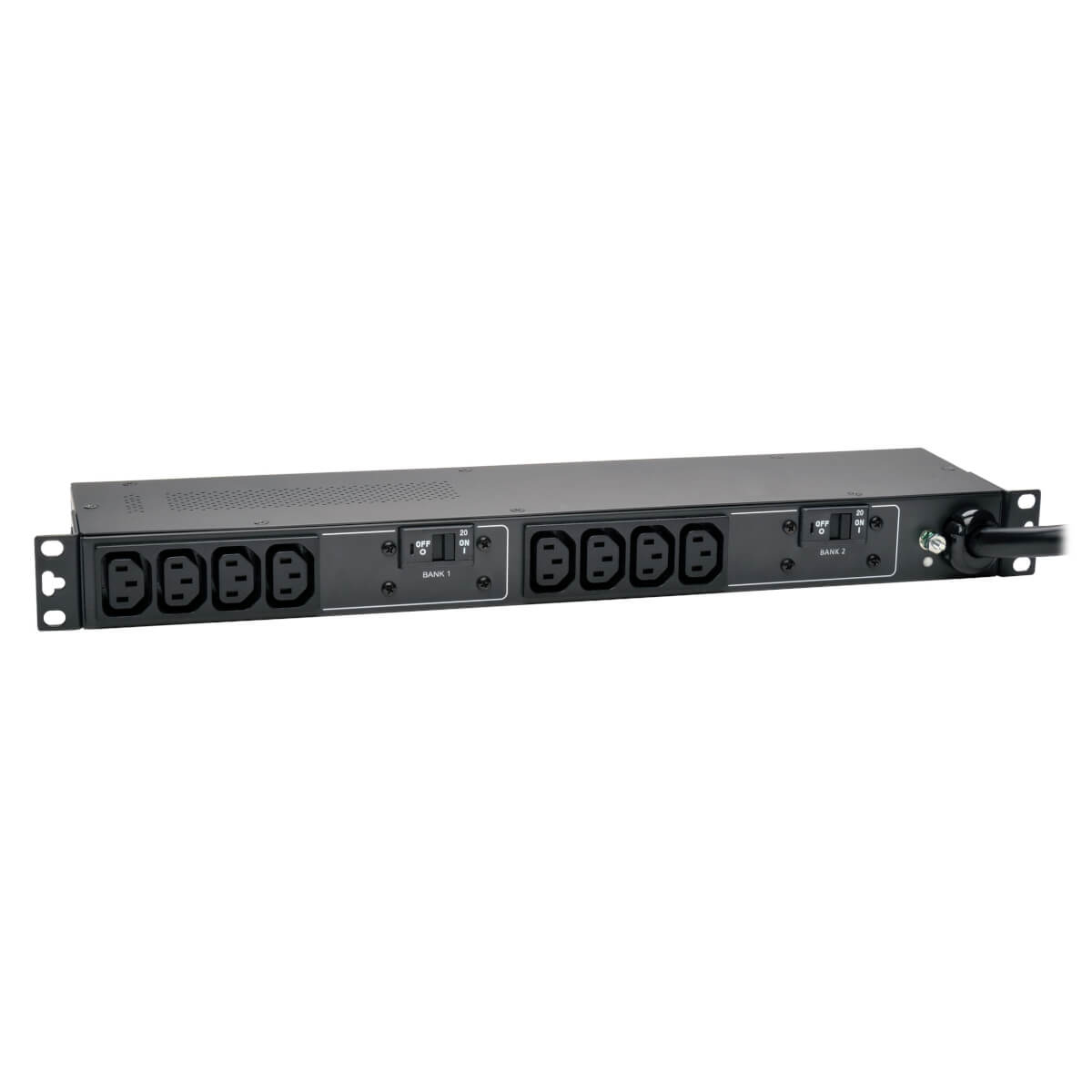

The PDUH32HV 7.7kW Single-Phase 200-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH32HV features 10 total outlets—two in front and eight in the rear. The IEC 309 32A Blue (2P+E) input plug with 3.6 m cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Certification
- CE
Nominal Output Voltage
- 200-240 V
AC Outlets Quantity
- 10 AC outlet(s)
Power Plug
- IEC309
PDU Types
- Basic
Nominal Input Voltage
- 200-240 V
Maximum Current
- 32 A
AC Outlet Types
- C13 coupler
Rack Capacity
- 1U
Output Voltage
- 240 V
Compliance Certificates
- RoHS
Operating altitude
- 0 - 3000 m
Storage temperature (T-T)
- -15 - 50 °C
Width
- 445 mm
Height
- 45 mm
Country of origin
- China
Package height
- 76 mm
Package width
- 514 mm
Housing material
- Metal
Product Colour
- Black
Mounting
- Horizontal
Brand
- Tripp Lite
