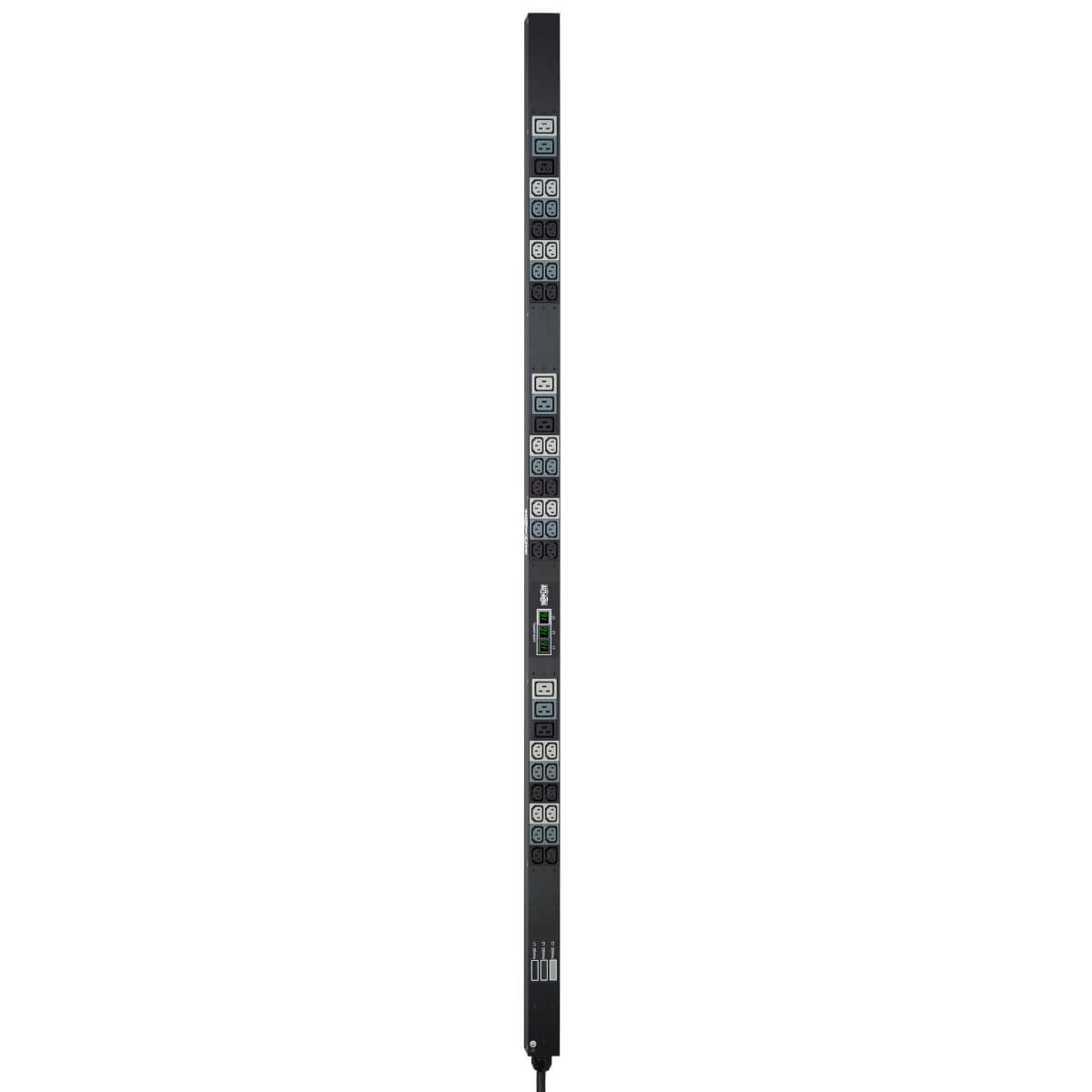

11.5kW Local Metered Power Distribution Unit / rack PDU (rPDU)
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
Weight
- 4.08 kg
PDU Types
- Metered
Maximum Current
- 16 A
AC Outlet Types
- C13 coupler, C19 coupler
Rack Capacity
- 0U
AC Input Frequency
- 50 - 60 Hz
Compliance Certificates
- RoHS
Operating relative humidity (H-H)
- 0 - 95%
Cable length
- 1.8 m
Depth
- 49 mm
Width
- 56 mm
Country of origin
- Taiwan
Package height
- 155 mm
Housing material
- Steel
Product Colour
- Black
Mounting
- Vertical
Brand
- Tripp Lite
