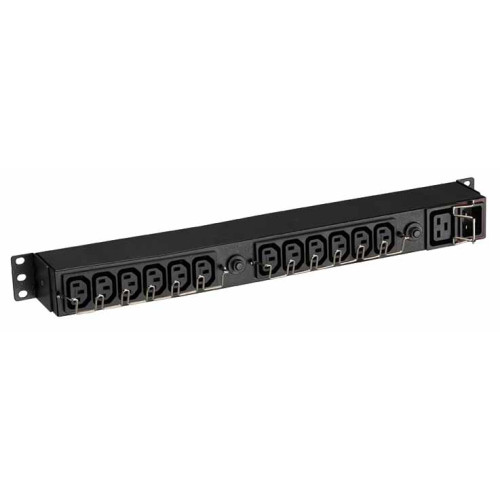

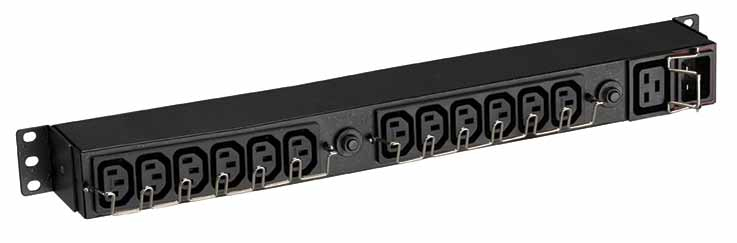

These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
PDU Types
- Basic
Rack Capacity
- 1U
Rack Mount Kit
- Yes
Size (Imperial)
- 48.3 cm (19")
AC Outlet Types
- C13 coupler
Load Capacity
- 3000 VA
Maximum Current
- 13 A
Maximum Power
- 3000 W
Nominal Input Voltage
- 230 V
Form Factor
- Rackmount
Power Plug
- C20 coupler
Cable Colour
- Black
AC Outlets Quantity
- 13 AC outlet(s)
Nominal Output Voltage
- 230 V
Output Connections
- 12 x C13 & 1 x C19
Maximum Input Current Per Phase
- 13 A
MPN
- EFLX12I
AC Input Frequency
- 50 - 60 Hz
Compliance Certificates
- RoHS
Rack Mounting
- Yes
Certification
- CE
Operating temperature (T-T)
- 0 - 45 °C
Package weight
- 9.5 kg
Weight
- 1.7 kg
Depth
- 58.5 mm
Width
- 439 mm
Height
- 43.4 mm
Package height
- 58 mm
Package depth
- 448 mm
Package width
- 180 mm
Product Colour
- Black
Mounting
- Horizontal/Vertical
Brand
- Eaton
