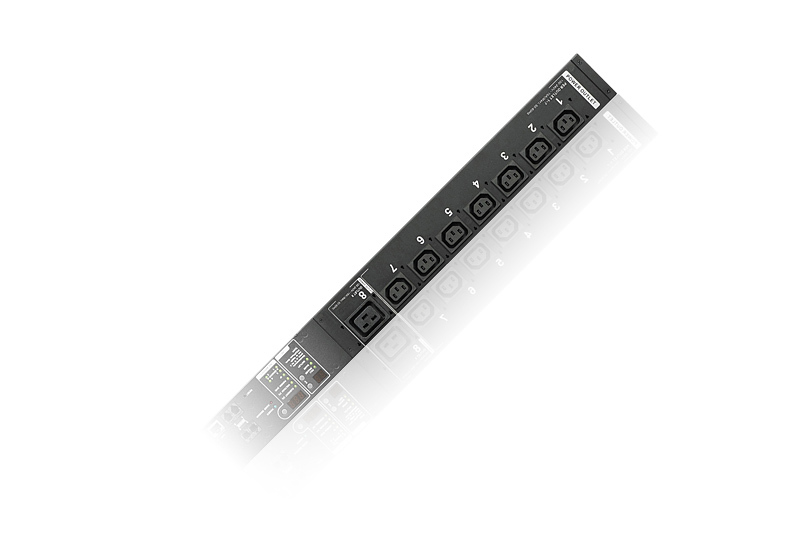

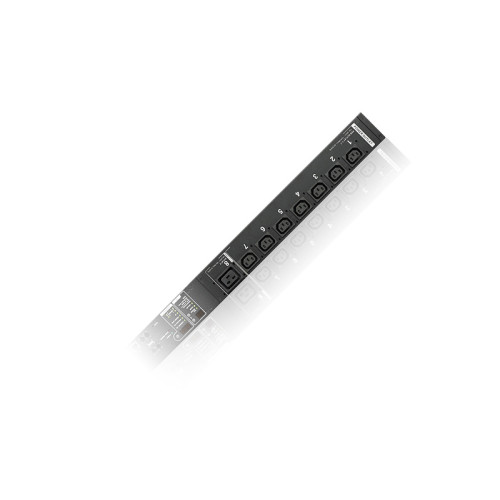

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8216 eco PDUs are intelligent PDUs that contain 16 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence's proactive overload protection, which automatically powers off the last outlet that caused the current overload.
NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors.
NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.
1x PE8216 eco PDU
1x Power Cord
1x Rack Mount Kit
1x CD-ROM (Manual, eco Sensors Software)
1x User Instructions
NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors.
NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.
1x PE8216 eco PDU
1x Power Cord
1x Rack Mount Kit
1x CD-ROM (Manual, eco Sensors Software)
1x User Instructions
LED indicators
- Yes
MPN
- PE8216G
Management Platform
- SNMP v1/v2/v3
Nominal Output Voltage
- 100 - 240 V
AC Outlets Quantity
- 16 AC outlet(s)
Power Plug
- C20 coupler
PDU Types
- Metered, Switched
Nominal Input Voltage
- 100 - 240 V
Maximum Current
- 16 A
Load Capacity
- 3680 VA
AC Outlet Types
- C13 coupler, C19 coupler
AC Input Frequency
- 50 - 60 Hz
Certification
- TUV-CB, CE-LVD, CE
Storage temperature (T-T)
- -20 - 60 °C
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Package weight
- 6.22 kg
Cable length
- 1.6 m
Weight
- 4.47 kg
Depth
- 1324.8 mm
Width
- 66 mm
Height
- 44 mm
Package height
- 179 mm
Package depth
- 1415 mm
Package width
- 187 mm
Housing material
- Metal
Product Colour
- Black
Brand
- ATEN
