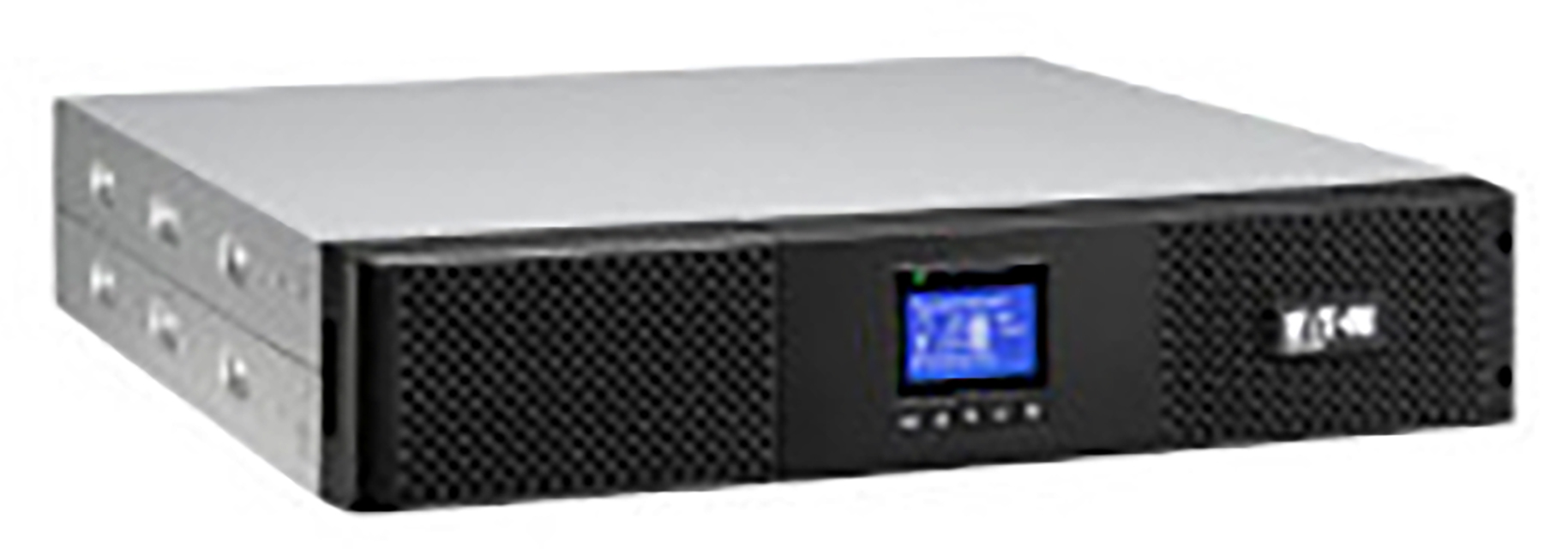

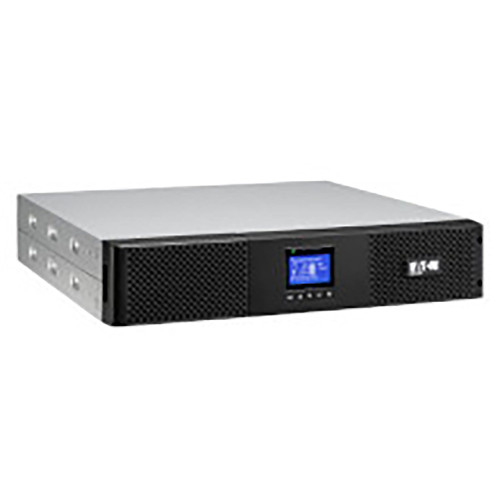

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format
Battery Voltage
- 12 V
Display Type
- LCD
USB Port Type
- USB Type-B
Waveform
- Sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C14 coupler
AC Outlets Quantity
- 9 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 2700 W
Power Protection Features
- Overdischarge
Quick Installation Guide
- Yes
ECO Mode
- Yes
Efficiency
- 92%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 140 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 3.5 min
Efficiency (ECO Mode)
- 97.5%
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Operating altitude
- 0 - 3000 m
Product colour
- Black
Height
- 34.6 mm
Width
- 214 mm
Depth
- 412 mm
Weight
- 34 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Certification
- TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Noise Level
- 45 dB
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 9 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Brand
- Eaton
