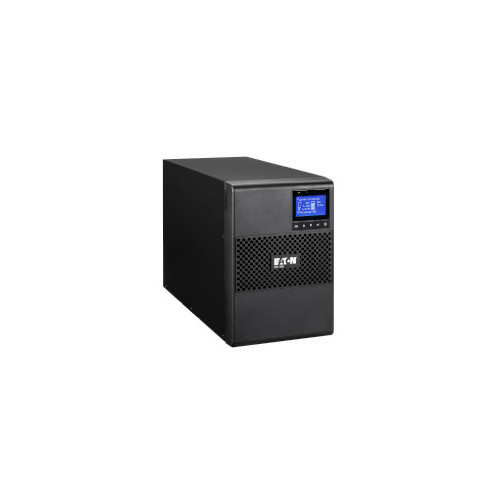

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Battery Voltage
- 12 V
USB Port Type
- USB Type-B
Waveform
- Sine
Rack Mount Kit
- No
AC Outlet Types
- C13 coupler
Power Plug
- C14 coupler
AC Outlets Quantity
- 6 AC outlet(s)
Number of Batteries Supported
- 3
Serial Ports Quantity
- 1
Output Power
- 900 W
Power Protection Features
- Overdischarge
Display Type
- LCD
ECO Mode
- Yes
Efficiency
- 89%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 120 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 6 min
Efficiency (ECO Mode)
- 94%
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Certification
- TUV cULus CSA 22.2 FCC 15 / B CISPR22 / B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2
Product colour
- Black
Height
- 377 mm
Width
- 296 mm
Depth
- 570 mm
Weight
- 15.2 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Operating altitude
- 0 - 3000 m
Noise Level
- 41 dB
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 9 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Tower
Quick Installation Guide
- Yes
Brand
- Eaton
