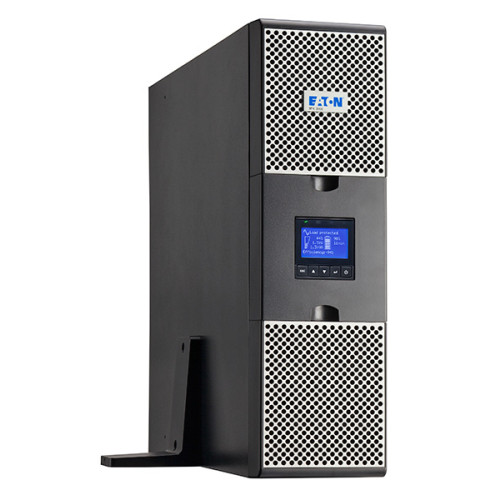

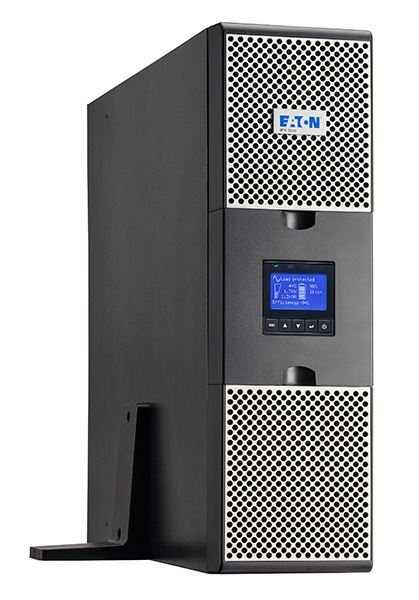

Eaton 9PX3000IRTBPB. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. Power plug: C20 coupler, AC outlets quantity: 3 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC / EN 62040 -2, FCC Class B, CISPR22 Class B CE / CB report (TÜV) / cULus / EAC / RCM / KC. Safety: IEC / EN 62040-1, UL 1778, CSA 22:17
Form Factor
- Rackmount/Tower
Output Operation Voltage (Min)
- 200 V
Output Operation Voltage (Max)
- 240 V
UPS Topology
- Double-conversion (Online)
Input Operation Voltage (Min)
- 176 V
Input Operation Voltage (Max)
- 276 V
Efficiency
- 94%
Power Protection Features
- Battery discharge
Output Power
- 3000 W
AC Outlets Quantity
- 3 AC outlet(s)
Power Plug
- C20 coupler
Rack Mount Kit
- Yes
RS-232 Ports
- 1
Display Type
- LCD
Rack Capacity
- 3U
Input Frequency
- 50/60 Hz
Sustainability Certificates
- ENERGY STAR
USB 2.0 Ports Quantity
- 1
Safety
- IEC / EN 62040-1, UL 1778, CSA 22:17
Noise Level
- 40 dB
Certification
- IEC / EN 62040 -2, FCC Class B, CISPR22 Class B CE / CB report (TÃœV) / cULus / EAC / RCM / KC
LED indicators
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Weight
- 27.4 kg
Depth
- 485 mm
Width
- 440 mm
Height
- 130 mm
Product Colour
- Black
Brand
- Eaton
