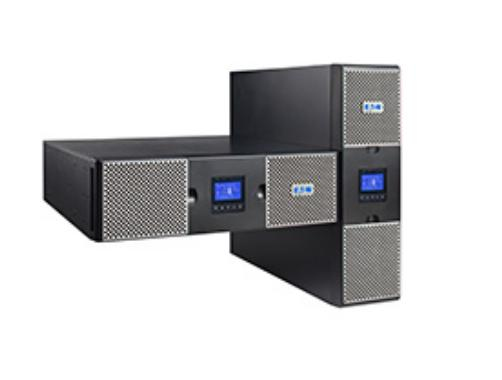

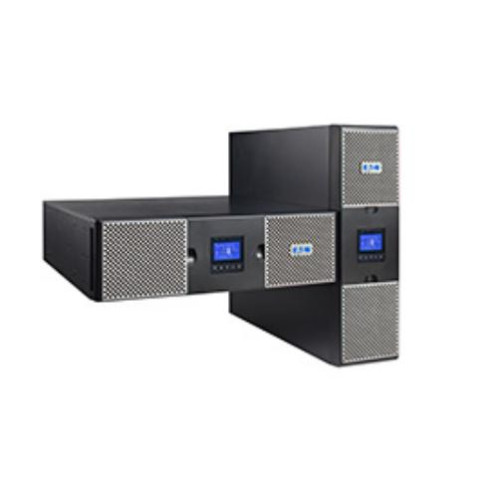

Eaton 9PX2200IRTBPH. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: Terminal, Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 10 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...
AC Outlets Quantity
- 1 AC outlet(s)
Rack Capacity
- 3U
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
Rack Mount Kit
- Yes
AC Outlet Types
- Terminal
Nominal Input Voltage
- 230 V
Power Plug
- Terminal
Form Factor
- Rackmount/Tower
Nominal Output Voltage
- 230 V
Output Power
- 2200 W
Efficiency
- 93.5%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
LED indicators
- Yes
Product Colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 130 mm
Width
- 440 mm
Depth
- 485 mm
Weight
- 24.5 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Certification
- IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Noise Level
- 40 dB
Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Brand
- Eaton
