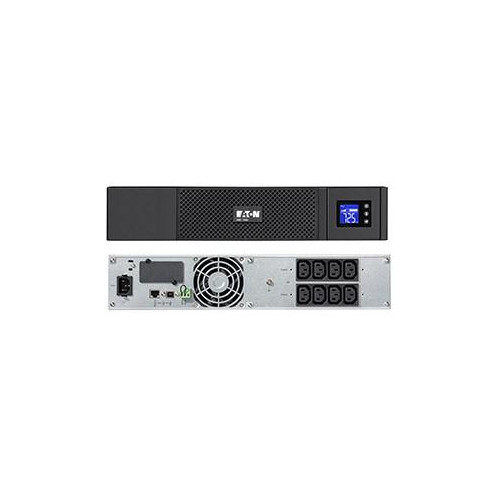

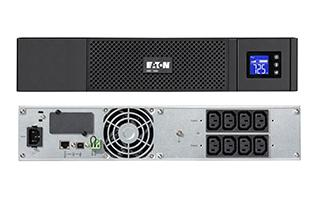

The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
Power Protection Features
- Overdischarge
Display Type
- LCD
USB Port Type
- USB Type-B
Waveform
- Sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 9 AC outlet(s)
Number of Batteries Supported
- 3
Serial Ports Quantity
- 1
Output Power
- 1050 W
Quick Installation Guide
- Yes
Battery Voltage
- 12 V
Efficiency
- 97%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 184 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 5 min
UPS Topology
- Line-Interactive
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 220 V
Certification
- TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus UL 1778
Product colour
- Black
Height
- 86.2 mm
Width
- 522 mm
Depth
- 441 mm
Weight
- 26.9 kg
USB port
- Yes
Operating relative humidity (H-H)
- 0 - 90%
Cables included
- Input power cable, USB cable
Operating altitude
- 0 - 3000 m
Noise Level
- 40 dB
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 9 Ah
Input Frequency
- 45/65 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Brand
- Eaton
