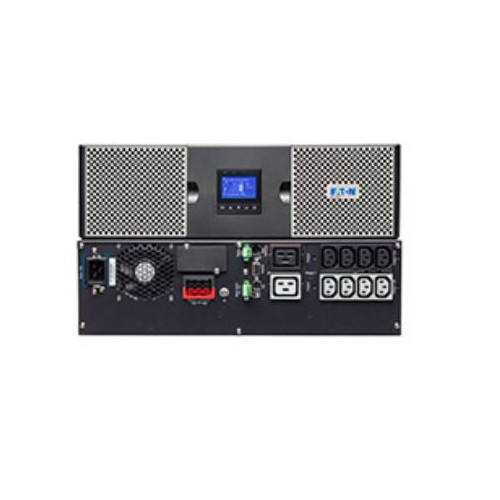

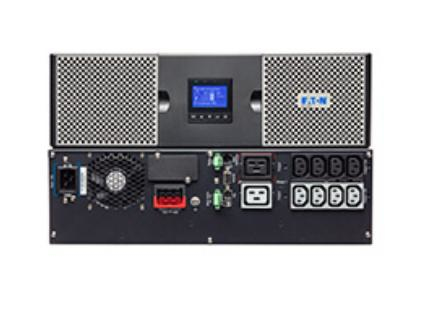

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Efficiency (ECO Mode)
- 98%
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 10 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 3000 W
Power Protection Features
- Overdischarge
Battery Voltage
- 12 V
Efficiency
- 94%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 3 min
Rack Mount Kit
- Yes
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 3 kVA
Automatic Battery Test
- Yes
Input Power Factor
- 0.99
Power Factor
- 1
Output Power Factor
- 1
Output Voltage Total Harmonic Distortion (THD)
- 3%
Noise Level
- 40 dB
Product Colour
- Black, Silver
Height
- 240 mm
Width
- 570 mm
Depth
- 780 mm
Weight
- 28 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Operating altitude
- 0 - 3000 m
Certification
- IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus Listed EAC
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 9 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Quick Installation Guide
- Yes
Display Type
- LCD
Waveform
- Sine
Brand
- Eaton
