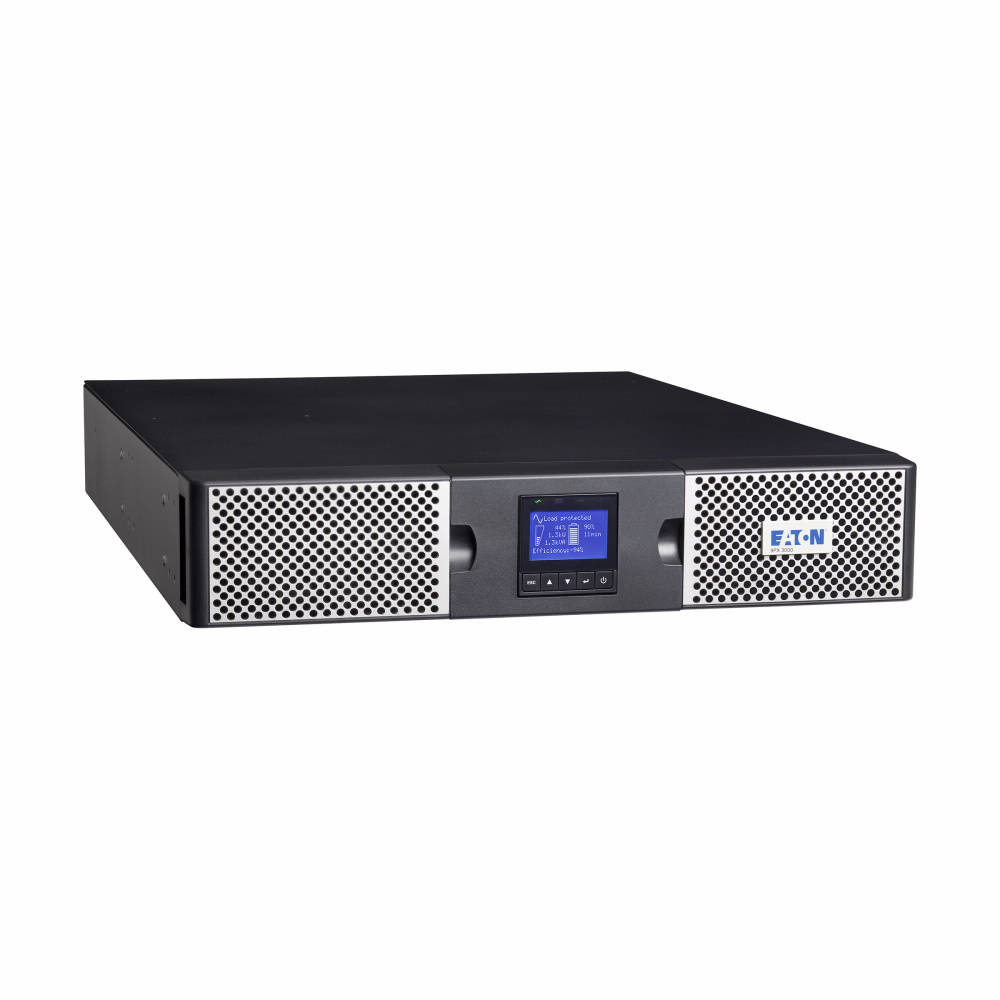

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Power Protection Features
- Overdischarge
Quick Installation Guide
- Yes
Display Type
- LCD
Waveform
- Sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 10 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 2200 W
Form Factor
- Rackmount/Tower
Battery Voltage
- 12 V
Efficiency
- 93.5%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 3 min
Efficiency (ECO Mode)
- 98%
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Operating altitude
- 0 - 3000 m
Product Colour
- Black
Height
- 230 mm
Width
- 580 mm
Depth
- 770 mm
Weight
- 25.6 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Certification
- IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Noise Level
- 40 dB
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 7 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Brand
- Eaton
