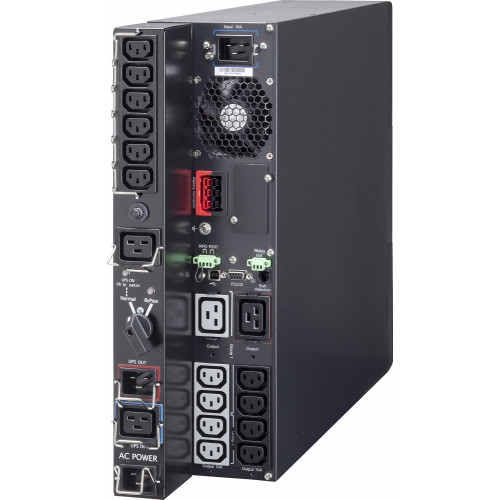

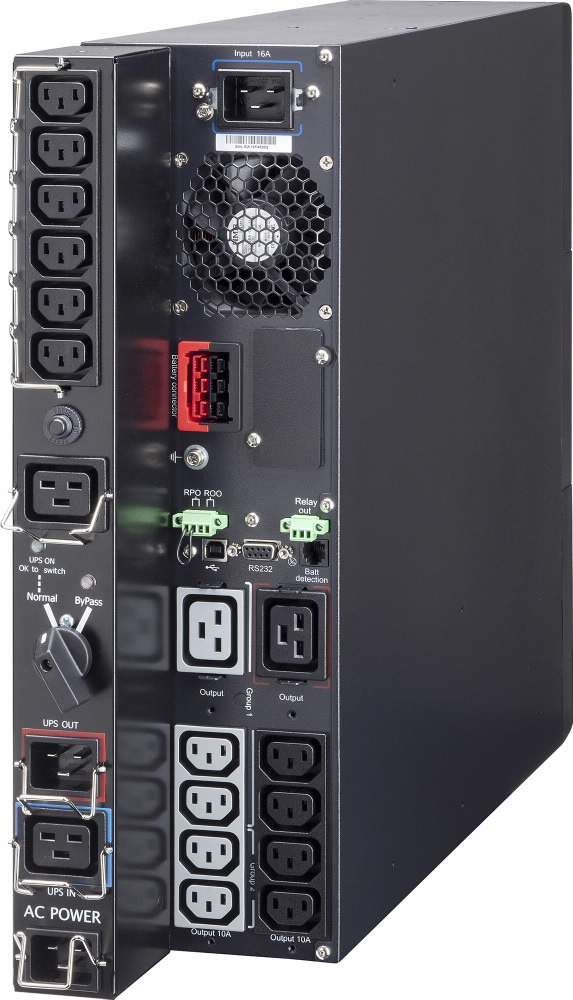

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Efficiency (ECO Mode)
- 98%
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 7 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 2200 W
Battery Voltage
- 12 V
ECO Mode
- Yes
Efficiency
- 93.5%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 3 min
Rack Mount Kit
- Yes
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Hot-swap Battery
- Yes
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 2.2 kVA
Automatic Battery Test
- Yes
Power Factor
- 1
Output Power Factor
- 1
Output Voltage Total Harmonic Distortion (THD)
- 3%
Compliance Certificates
- CE
Product Colour
- Black, Silver
Height
- 290 mm
Width
- 580 mm
Depth
- 770 mm
Weight
- 25 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Operating altitude
- 0 - 3000 m
Certification
- IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Noise Level
- 40 dB
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 7 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Quick Installation Guide
- Yes
Display Type
- LCD
USB Port Type
- USB Type-B
Waveform
- Sine
Brand
- Eaton
