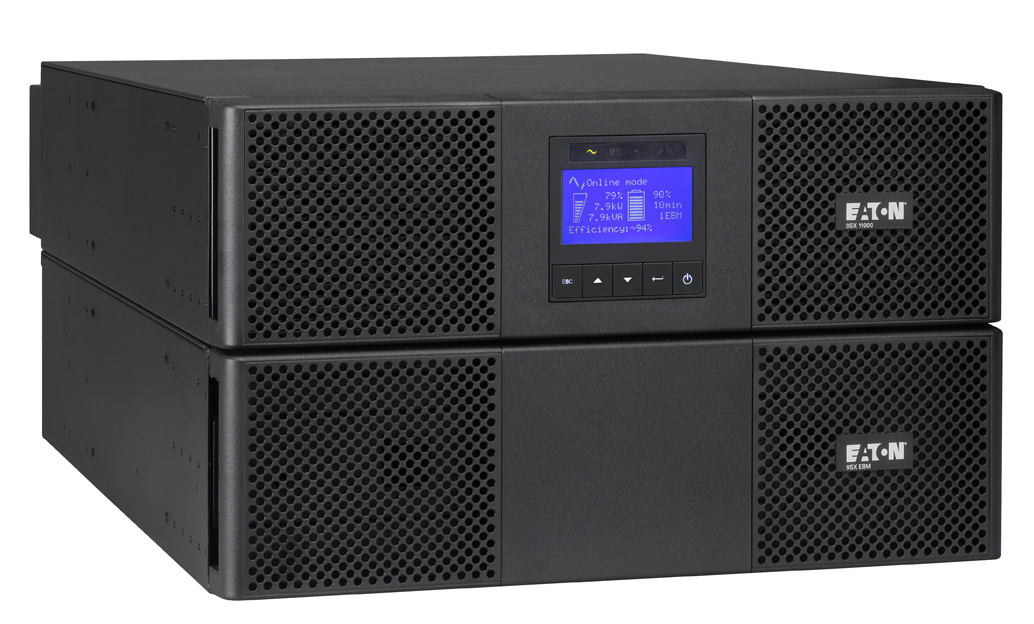

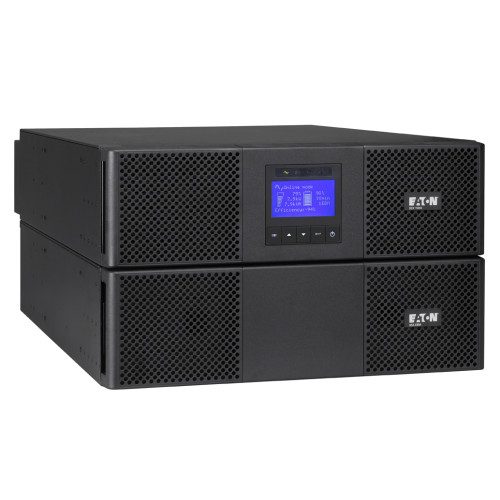

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
Output Operation Voltage (Max)
- 250 V
Maximum Current
- 150 A
Power Plug
- Terminal
Output Power
- 10000 W
Number of Phases
- 1
Crest Factor
- 3:1
Efficiency
- 98%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
AC Outlet Types
- Terminal
Output Operation Voltage (Min)
- 200 V
Input Current Total Harmonic Distortion (THD)
- 5%
Typical Backup Time at Half Load
- 9 min
Output Power Capacity
- 11 kVA
Output Voltage Regulation
- 1%
Automatic Battery Test
- Yes
Output Voltage Total Harmonic Distortion (THD)
- 2%
RS-232 Ports
- 1
Display Type
- LCD
Rack Capacity
- 6U
Form Factor
- Rackmount/Tower
Input Frequency
- 40/70 Hz
Sustainability Certificates
- ENERGY STAR
USB 2.0 Ports Quantity
- 1
Safety
- EN 62040-1, UL 1778, CSA 22.2
Noise Level
- 50 dB
Operating temperature (T-T)
- 0 - 40 °C
Weight
- 86 kg
Depth
- 700 mm
Width
- 260 mm
Height
- 440 mm
Product Colour
- Black
Brand
- Eaton
