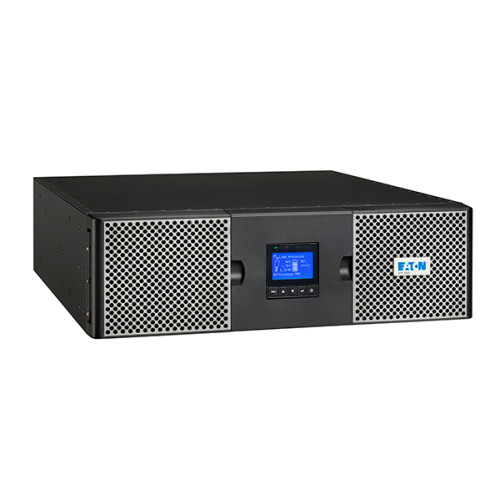

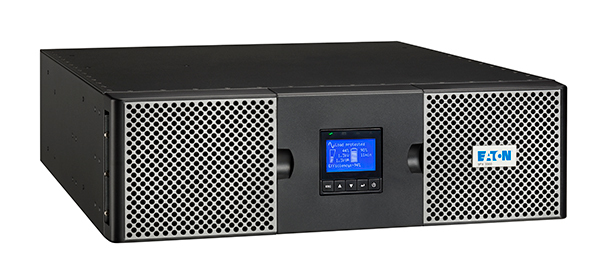

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.
Nominal Output Voltage
- 230 V
Rack Capacity
- 3U
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Nominal Input Voltage
- 230 V
Power Plug
- C20 coupler
AC Outlets Quantity
- 10 AC outlet(s)
Form Factor
- Rackmount/Tower
Output Power
- 3000 W
Efficiency
- 0.94%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
Serial Interface
- Yes
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Certification
- IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Product Colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 130 mm
Width
- 440 mm
Depth
- 485 mm
Weight
- 27.4 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Noise Level
- 40 dB
Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Brand
- Eaton
