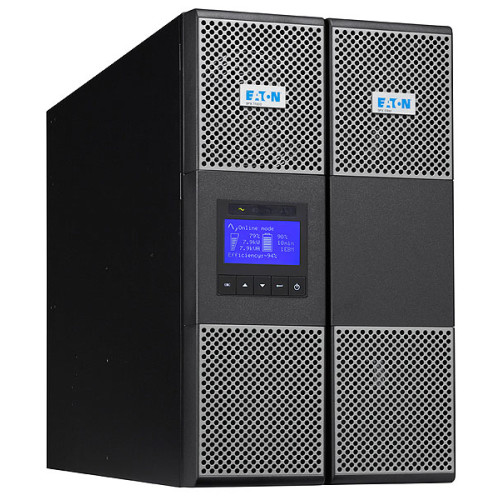

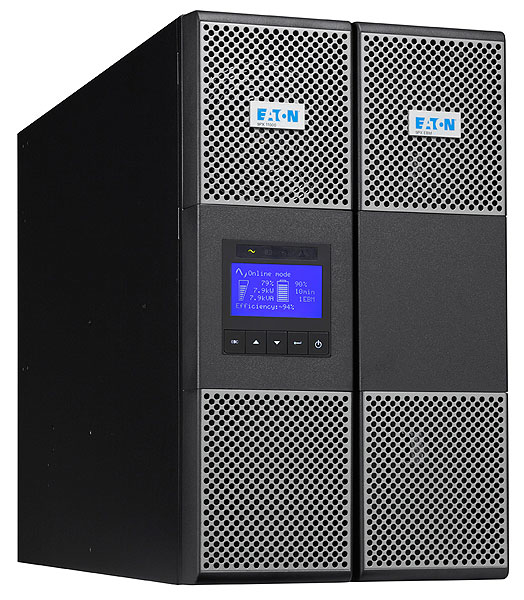

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Output Operation Voltage (Max)
- 240 V
Power Plug
- Terminal
AC Outlets Quantity
- 5 AC outlet(s)
Serial Ports Quantity
- 1
Nominal Output Voltage
- 230 V
Output Power
- 10000 W
Cooling Type
- Active
Built-in Fan
- Yes
Efficiency
- 0.95%
Input Operation Voltage (Max)
- 480 V
Input Operation Voltage (Min)
- 305 V
UPS Topology
- Double-conversion (Online)
Nominal Input Voltage
- 400 V
Output Operation Voltage (Min)
- 200 V
Hot-swap Battery
- Yes
Input Current Total Harmonic Distortion (THD)
- 5%
Number of Input Phases
- 3
Output Frequency
- 50/60 Hz
Typical Backup Time at Half Load
- 13 min
Output Power Capacity
- 11 kVA
Automatic Battery Test
- Yes
Management Card Included
- No
Power Factor
- 0.9
Output Voltage Total Harmonic Distortion (THD)
- 2%
Safety
- IEC/EN 62040-1
Product Colour
- Black
Harmonized System (HS) code
- 85078000
Height
- 260 mm
Width
- 440 mm
Depth
- 700 mm
Weight
- 88 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Certification
- IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Noise Level
- 50 dB
Bundled Software
- Intelligent Power Software suite
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Input Frequency
- 40/70 Hz
Form Factor
- Rackmount/Tower
Rack Capacity
- 6U
Display Type
- LCD
RS-232 Ports
- 1
Waveform
- Pure sine
AC Outlet Types
- C19 coupler, Terminal
Brand
- Eaton
