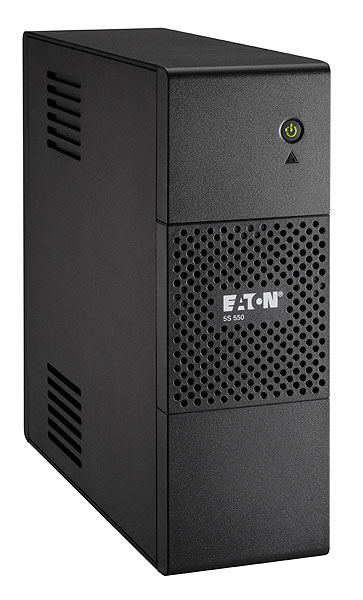

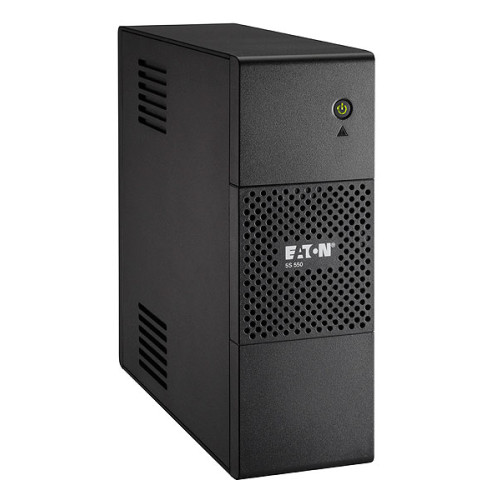

The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.
Battery Voltage
- 12 V
Input Frequency
- 46/70 Hz
Form Factor
- Tower
AC Outlet Types
- C13 coupler
Power Plug
- C14 coupler
AC Outlets Quantity
- 6 AC outlet(s)
Surge Protection
- Yes
Output Power
- 900 W
Power Protection Features
- Overdischarge
Battery Capacity
- 7 Ah
Efficiency
- 97%
Input Operation Voltage (Max)
- 275 V
Input Operation Voltage (Min)
- 175 V
Serial Interface
- No
Typical Backup Time at Full Load
- 2 min
UPS Topology
- Line-Interactive
Output Operation Voltage (Max)
- 276 V
Output Operation Voltage (Min)
- 184 V
Cables included
- Input power cable, USB cable
Product colour
- Black
Height
- 250 mm
Width
- 260 mm
Depth
- 87 mm
Weight
- 7.1 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 35 °C
Operating relative humidity (H-H)
- 0 - 85%
LED indicators
- Yes
Operating altitude
- 0 - 2000 m
Certification
- IEC/EN 62040-1 IEC/EN 62040-2 EAC
Noise Level
- 25 dB
Compliance Certificates
- CE
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Brand
- Eaton
