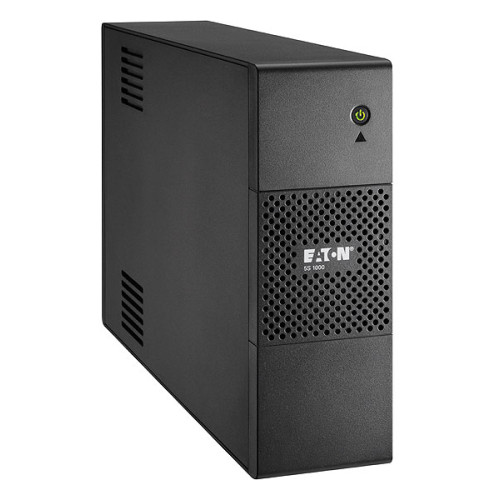

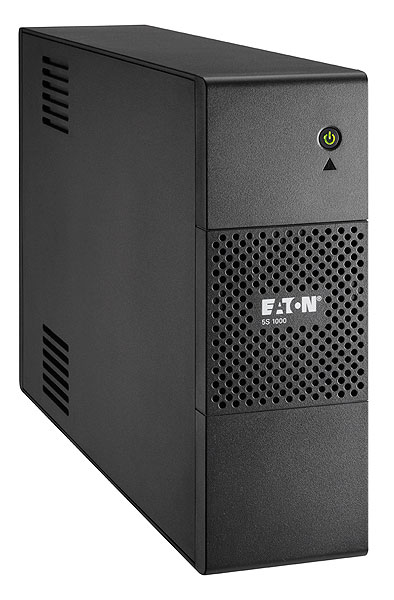

The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.
UPS Topology
- Line-Interactive
AC Outlets Quantity
- 8 AC outlet(s)
Surge Protection
- Yes
Output Power
- 330 W
Power Protection Features
- Overdischarge
Battery Voltage
- 12 V
Cold Start
- Yes
Efficiency
- 97%
Input Operation Voltage (Max)
- 275 V
Input Operation Voltage (Min)
- 175 V
Typical Backup Time at Full Load
- 2 min
Power Plug
- C14 coupler
Output Operation Voltage (Max)
- 276 V
Output Operation Voltage (Min)
- 184 V
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 0.55 kVA
Automatic Voltage Regulation (AVR)
- Yes
Automatic Battery Test
- Yes
Power Factor
- 0.6
Certification
- IEC/EN 62040-1 IEC/EN 62040-2 EAC
Product Colour
- Black
Height
- 250 mm
Width
- 260 mm
Depth
- 87 mm
Weight
- 7.1 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 35 °C
Operating relative humidity (H-H)
- 0 - 85%
Cables included
- Input power cable, USB cable
LED indicators
- Yes
Noise Level
- 25 dB
Compliance Certificates
- CE
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 7 Ah
Input Frequency
- 46/70 Hz
Form Factor
- Tower
USB Port Type
- USB Type-B
AC Outlet Types
- C13 coupler
Brand
- Eaton
