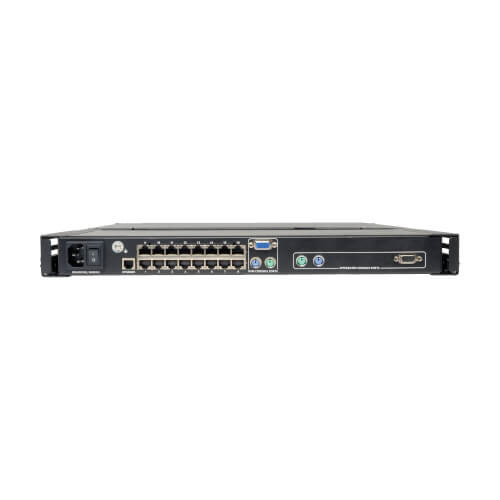

This B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.
The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a cabling and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hotkey commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.
The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.
The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a cabling and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hotkey commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.
The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.
Compliance Certificates
- RoHS
MPN
- B070-016-19
KVM Switch Ports Quantity
- 16
AC Adapter Frequency
- 50/60 Hz
I/O Ports
- 16x RJ-45
Built-in KVM Switch
- Yes
On Screen Display (OSD)
- Yes
Interface
- VGA, USB, PS/2
AC Adapter Input Voltage
- 100 - 240 V
Relative Humidity
- 0 - 80%
Display Resolution
- 1280 x 1024 pixels
Display Diagonal
- 48.3 cm (19")
Display
- LCD
Certification
- UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Operating temperature (T-T)
- -40 - 158 °F
Package weight
- 18.1 kg
Weight
- 14 kg
Depth
- 722.4 mm
Width
- 449.3 mm
Height
- 43.4 mm
Country of origin
- Taiwan
Package height
- 152.4 mm
Package depth
- 830.1 mm
Package width
- 594.4 mm
Product Colour
- Black
Brand
- Tripp Lite
