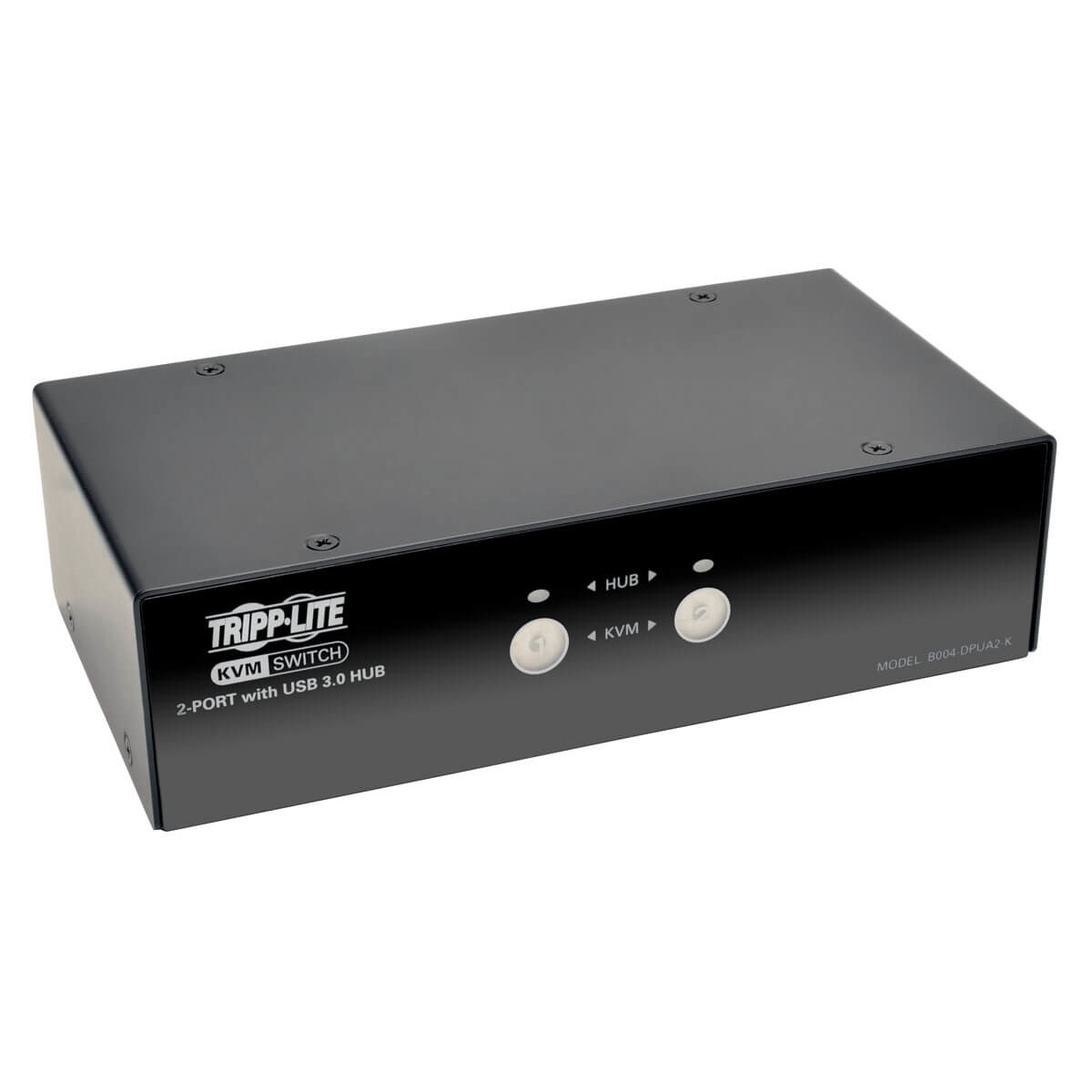

Access and Control 2 Computers with One KVM Switch
Switch between computers using keyboard hotkeys or front-panel buttons
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Monitor's EDID information sent to connected computer when selected
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing the other computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
Switch between computers using keyboard hotkeys or front-panel buttons
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Monitor's EDID information sent to connected computer when selected
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing the other computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
Input Current
- 0.5 A
Maximum Resolution
- 2560 x 1600 pixels
USB 2.0 Ports Quantity
- 2
AC Adapter Included
- Yes
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 100-240 V
Output Voltage
- 9 V
Output Current
- 2 A
Video Port Type
- DisplayPort
Headphone Outputs
- 3
DC-In Jack
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB B
AC Input Frequency
- 50 - 60 Hz
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 1
Console USB Ports Quantity
- 2
Number of Users
- 1 user(s)
USB Hub
- Yes
DDC/DDC2 Supported
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub Ports Quantity
- 2
Master (Outer) Case GTIN (EAN/UPC)
- 10037332188622
MPN
- B004-DPUA2-K
Cable length
- 1.2 m
Product Colour
- Black
Package width
- 205.7 mm
Package depth
- 139.7 mm
Package height
- 175.3 mm
Country of origin
- China
Harmonized System (HS) code
- 85176200
Height
- 45.7 mm
Width
- 165.1 mm
Depth
- 88.9 mm
Weight
- 590 g
Built-in display
- No
USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
Package weight
- 1.36 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Cables included
- Audio (3.5mm), DisplayPort, USB
LED indicators
- Yes
Rack Mounting
- No
Compliance Certificates
- RoHS
Brand
- Tripp Lite
