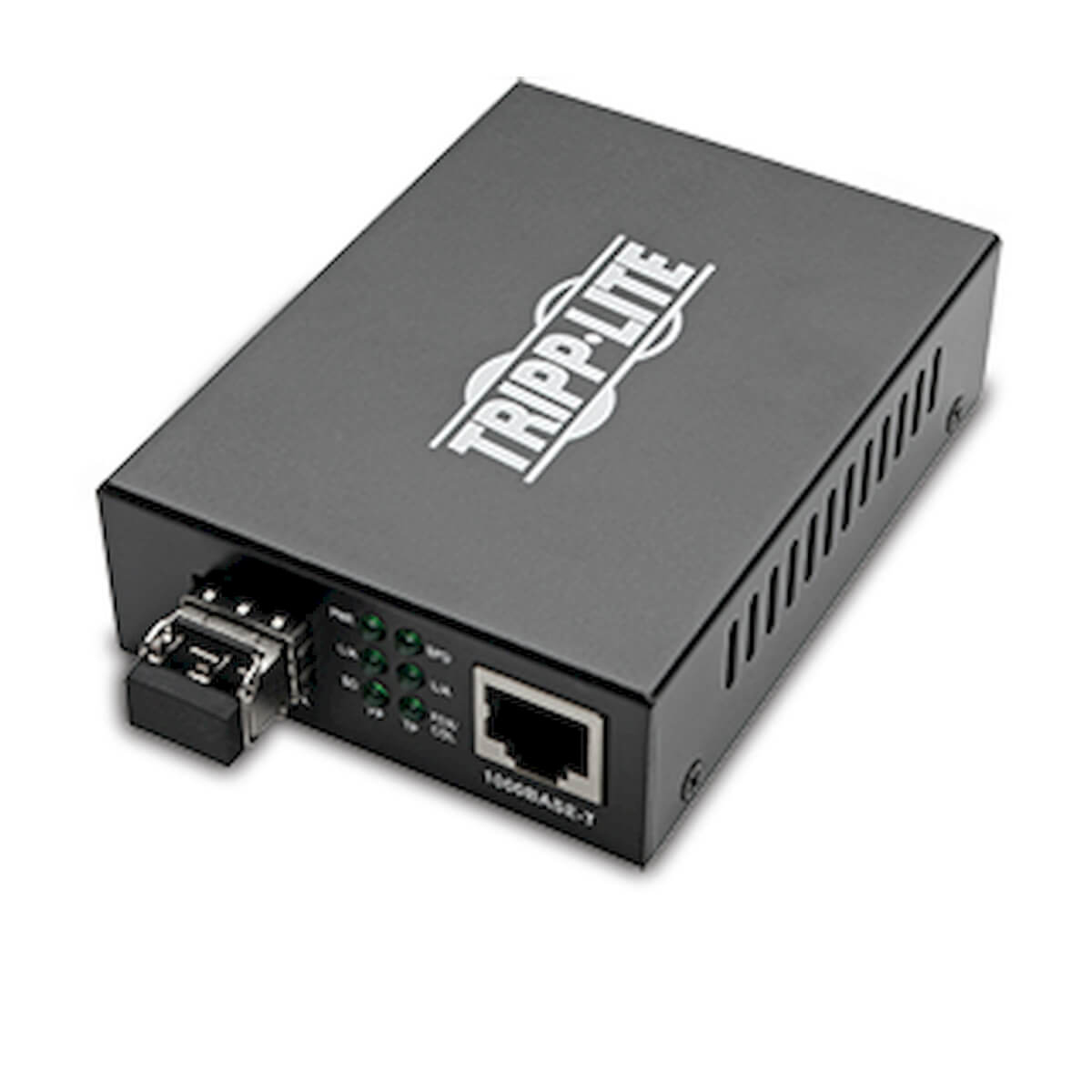

Extends a Gigabit Ethernet Signal up to 550 m (1,804 ft.) Using LC Multimode Cable
Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
Fiber optic technology more effective than Cat5e/6 over long distances
Supports 50/125 multimode fiber optic cabling up to 550 m
Supports 62.5/125 multimode fiber optic cabling up to 400 m
Connection requires an N785-INT-LC-MM at both ends
Advanced Monitoring and Control
Supports automatic sensing of network speed
Supports both full-duplex and half-duplex operation
Supports automatic MDI/MDI-X configuration
6 LEDs indicate network and fiber link status at a glance
Plug-and-Play Operation
No additional software or drivers required
Compact unit sets up in minutes
Durable metal housing designed to last
Power supply includes international plug adapters for North America, U.K., Europe and Australia
Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
Fiber optic technology more effective than Cat5e/6 over long distances
Supports 50/125 multimode fiber optic cabling up to 550 m
Supports 62.5/125 multimode fiber optic cabling up to 400 m
Connection requires an N785-INT-LC-MM at both ends
Advanced Monitoring and Control
Supports automatic sensing of network speed
Supports both full-duplex and half-duplex operation
Supports automatic MDI/MDI-X configuration
6 LEDs indicate network and fiber link status at a glance
Plug-and-Play Operation
No additional software or drivers required
Compact unit sets up in minutes
Durable metal housing designed to last
Power supply includes international plug adapters for North America, U.K., Europe and Australia
Connectivity technology
- Wired
MPN
- N785-INT-LC-MM
Master (Outer) Case GTIN (EAN/UPC)
- 10037332205688
External Power Adapter
- Yes
Input Current
- 2 A
Output Voltage
- 5 V
Input Voltage
- 100 - 240 V
AC Adapter Included
- Yes
AC Input Frequency
- 50 - 60 Hz
Compliance Certificates
- RoHS
Fiber Ports Quantity
- 2
Ethernet LAN (RJ-45) Ports
- 1
Internal
- No
Wavelength
- 850 nm
Maximum transfer distance
- 550 m
Fiber optic connector
- LC
Converter input interface
- 1000Base-T
Maximum data transfer rate
- 1000 Mbit/s
Package weight
- 410 g
Weight
- 450 g
Depth
- 69.9 mm
Width
- 119.4 mm
Height
- 25.4 mm
Harmonized System (HS) code
- 85176990
Country of origin
- China
Package height
- 48.3 mm
Package depth
- 228.6 mm
Package width
- 121.9 mm
Product Colour
- Black
Brand
- Tripp Lite
