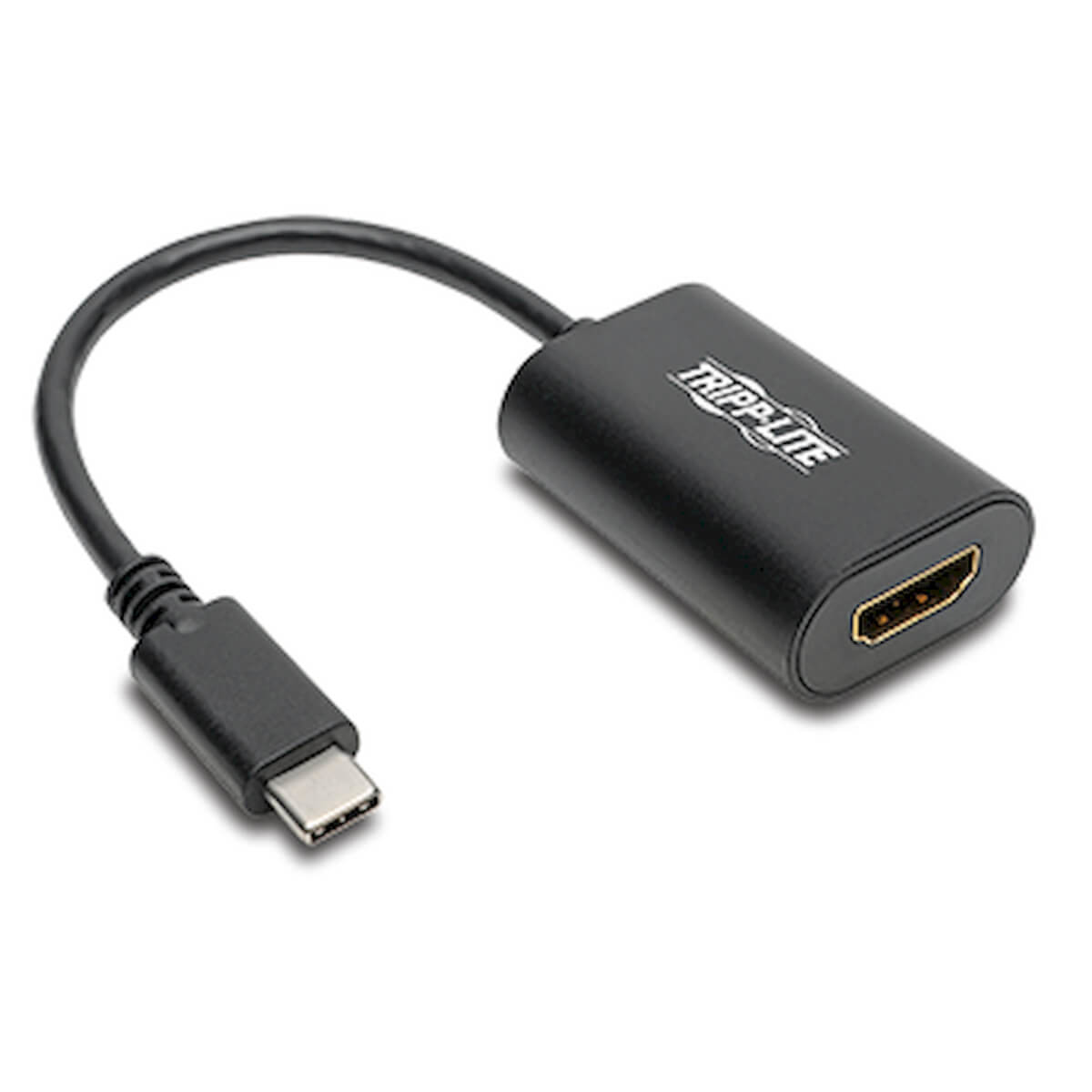

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Meets HDCP 2.2 specifications
Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Crystal-Clear True 4K Video and Digital Audio
Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
Supports 24-bit Deep Color (8 bits per channel)
Supports 7.1-channel surround sound
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Meets HDCP 2.2 specifications
Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Crystal-Clear True 4K Video and Digital Audio
Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
Supports 24-bit Deep Color (8 bits per channel)
Supports 7.1-channel surround sound
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays
Connector 2 gender
- Female
MPN
- U444-06N-HD4K6B
Master (Outer) Case GTIN (EAN/UPC)
- 10037332203363
Cable Diameter
- 4 mm
Connector Contacts Plating
- Nickel/Gold
Maximum Resolution
- 4096 x 2160 pixels
Compliance Certificates
- RoHS
Certification
- FCC, CE
Storage temperature (T-T)
- -20 - 85 °C
Operating relative humidity (H-H)
- 5 - 90%
Operating temperature (T-T)
- -20 - 70 °C
Package weight
- 50 g
Data transfer rate
- 5 Gbit/s
Connector 1 gender
- Male
Connector 2
- HDMI
Connector 1
- USB Type-C
Cable length
- 0.1524 m
Weight
- 20 g
Harmonized System (HS) code
- 84733080
Country of origin
- China
Package height
- 26.9 mm
Package depth
- 76.2 mm
Package width
- 145 mm
Quantity per pack
- 1 pc(s)
Product Colour
- Black
Brand
- Tripp Lite
