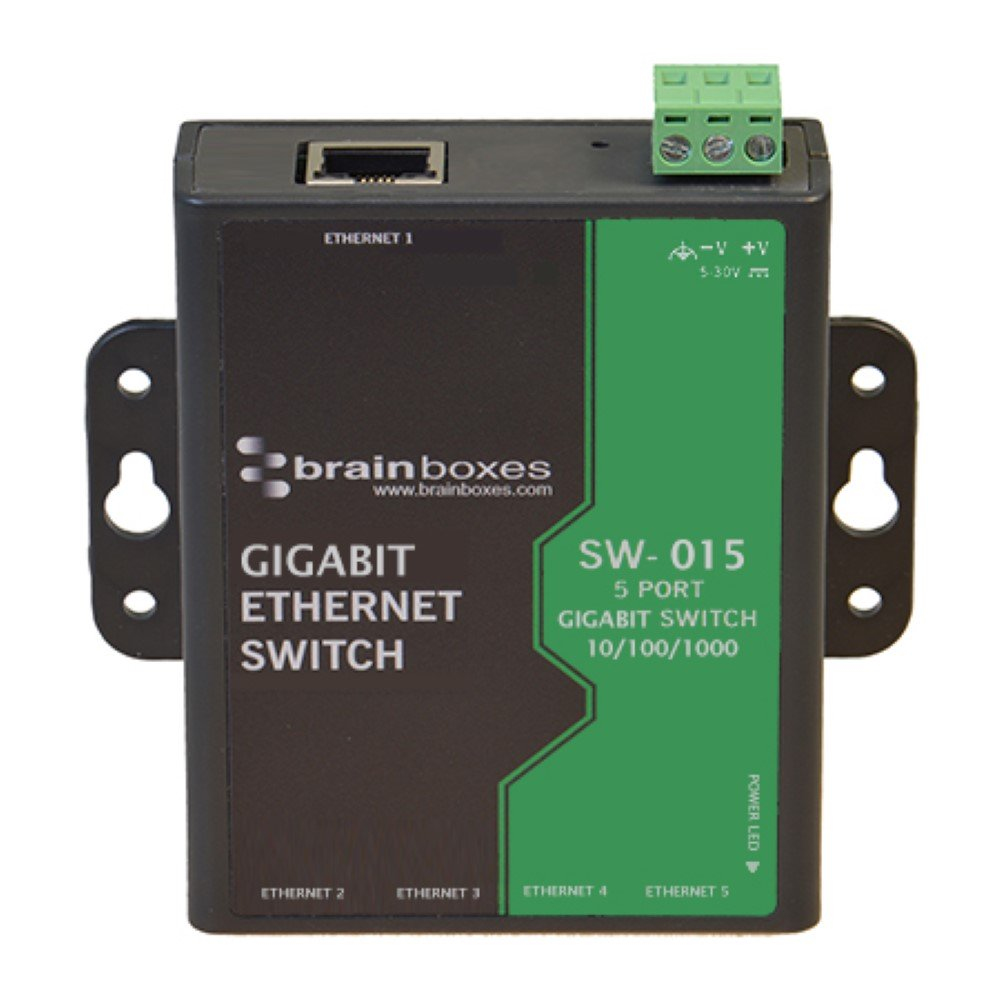

Compact 5 port Gigabit Ethernet unmanaged switch.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
Auto MDI/MDI-X
- Yes
MPN
- SW-015
Auto-Sensing
- Yes
Quick Start Guide
- Yes
Wall Mountable
- Yes
DIN Rail Mounting
- Yes
Rack Mounting
- Yes
Power over Ethernet (PoE)
- No
Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
- 5
Switch type
- Unmanaged
Storage temperature (T-T)
- -10 - 70 °C
Operating relative humidity (H-H)
- 5 - 95%
Operating temperature (T-T)
- -10 - 60 °C
Weight
- 129 g
Depth
- 100 mm
Width
- 110 mm
Height
- 30 mm
Package height
- 50 mm
Package depth
- 140 mm
Package width
- 160 mm
Product Colour
- Black, Green
Brand
- Brainboxes
