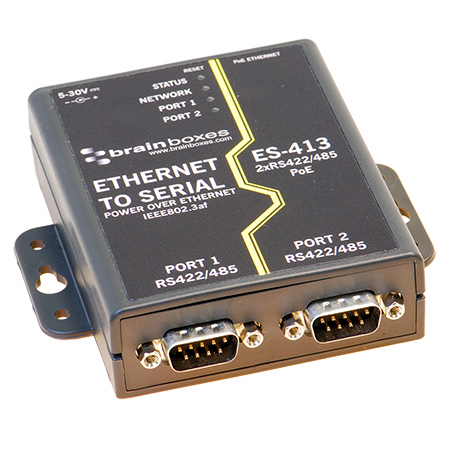

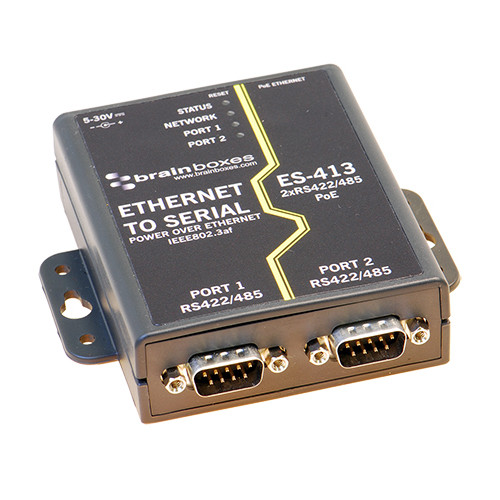

Ethernet to Serial device server with Power over Ethernet providing access to two RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance.
Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch.
Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch.
Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Auto MDI/MDI-X
- Yes
MPN
- ES-413
Data Bits
- 5, 6, 7, 8
Serial Ports Quantity
- 2
User Guide
- Yes
Serial Interface Type
- RS-422/485
Power Source Type
- PoE
Cabling Technology
- 10/100Base-T(X)
Flow Control Support
- Yes
Compliance Certificates
- RoHS
Ethernet LAN (RJ-45) Ports
- 1
Ethernet LAN Data Rates
- 10,100 Mbit/s
LED indicators
- Yes
Networking standards
- IEEE 802.3af
Operating relative humidity (H-H)
- 5 - 95%
Operating temperature (T-T)
- 0 - 60 °C
Package weight
- 244 g
Weight
- 131 g
Depth
- 100 mm
Width
- 101 mm
Height
- 27 mm
Package height
- 49 mm
Package depth
- 135 mm
Package width
- 160 mm
Product Colour
- Black, White
Brand
- Brainboxes
