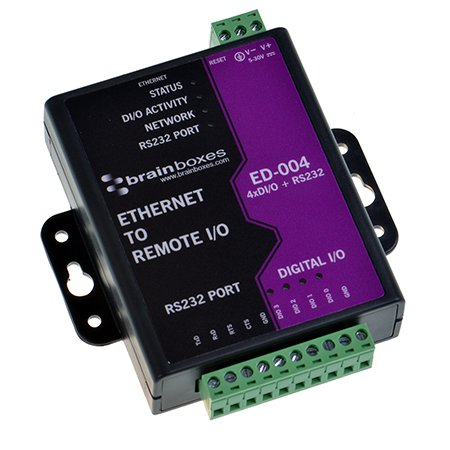

Ethernet to DIO device with Serial port: 4 digital input channels and 8 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Storage temperature (T-T)
- 0 - 70 °C
MPN
- ED-004
Isolation
- 1.5 kV
Signal Direction
- Input/output
Module Type
- Digital
Channels Quantity
- 4 channels
Power Consumption
- 100 mA
Mobile Operating Systems Supported
- Android, iOS
Serial Interface Type
- RS-232
Ethernet LAN (RJ-45) Ports
- 1
Operating temperature (T-T)
- 0 - 60 °C
Linux operating systems supported
- Yes
Depth
- 100 mm
Width
- 116 mm
Height
- 26 mm
Package height
- 49 mm
Package depth
- 135 mm
Package width
- 160 mm
Product Colour
- Black, Purple
Brand
- Brainboxes
