DA-550F

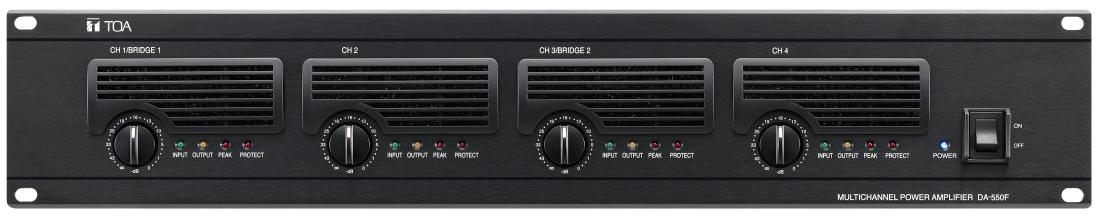

The DA-550F is a 4-Channel Digital Power Amplifier featuring lightweight, compact, high power output, and high efficiency. It delivers 550 W × 4 channels (4 Ω output) using a switching power supply. Each channel is equipped with an independent power section. Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).
The DA-550F is a 4-Channel Digital Power Amplifier featuring lightweight, compact, high power output, and high efficiency. It delivers 550 W × 4 channels (4 Ω output) using a switching power supply. Each channel is equipped with an independent power section. Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).
LED indicators
- Yes
MPN
- DA-550F
Peak Power Per Channel
- 1100 W
Amplifier Class
- D
XLR In
- Yes
Signal-to-Noise Ratio (SNR)
- 100 dB
Output Impedance
- 8 Ω
Audio Output Channels
- 4.0 channels
Input Impedance
- 10000 Ω
Frequency Range
- 20 - 20000 Hz
Total Harmonic Distortion (THD)
- 0.15%
AC Input Voltage
- 220-240 V
Storage temperature (T-T)
- 0 - 90 °C
Connectivity technology
- Wired
Cables included
- AC
Operating temperature (T-T)
- -10 - 40 °C
Power consumption (typical)
- 2750 W
Cable length
- 2 m
Weight
- 9 kg
Depth
- 404.2 mm
Width
- 482 mm
Height
- 88.4 mm
Product Colour
- Black
Material
- Aluminium, Steel
Brand
- TOA UK
