C-001T

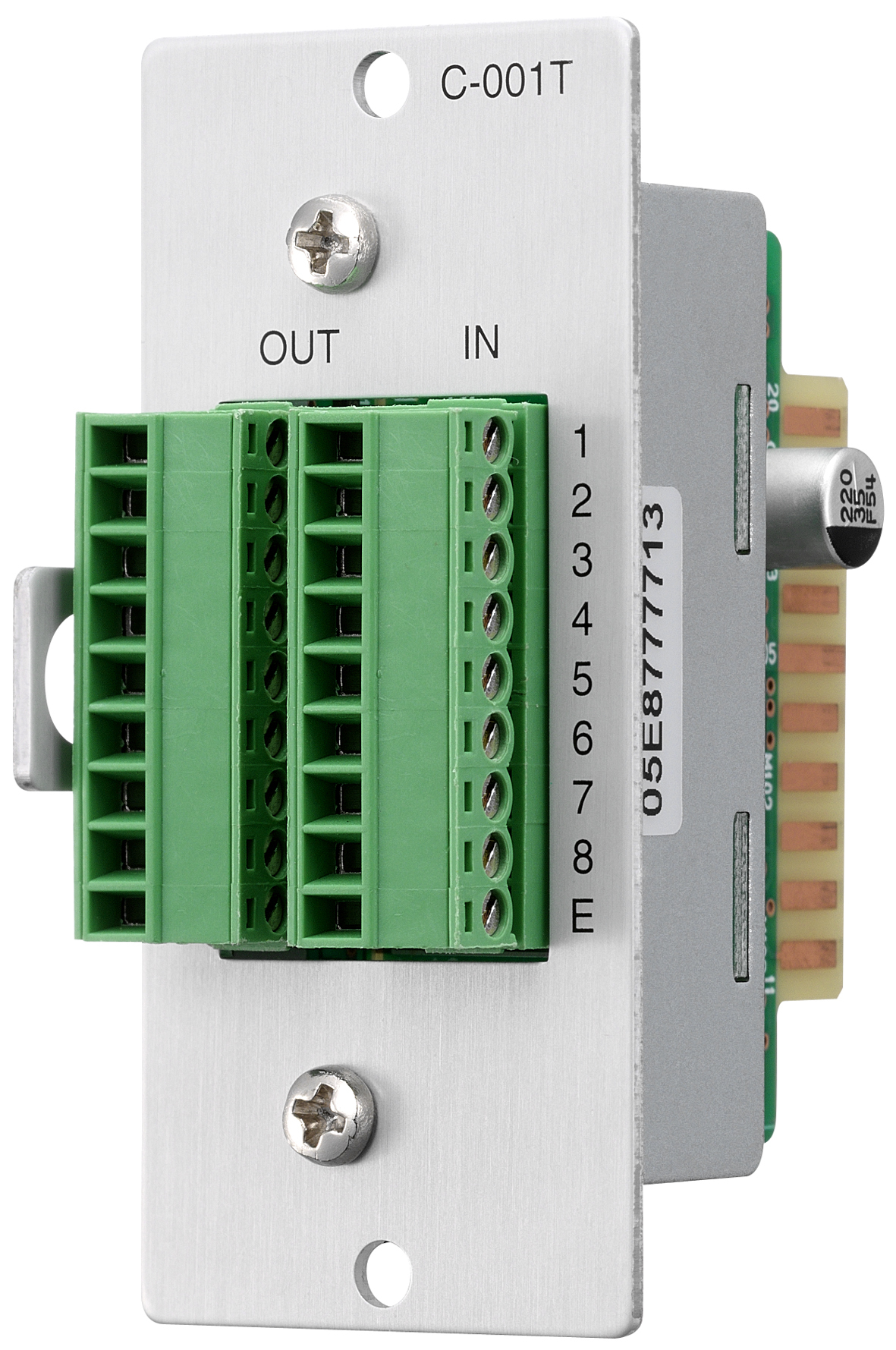

The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
Product Colour
- Green, Grey
Height
- 78 mm
Width
- 35 mm
Depth
- 91.5 mm
Weight
- 62 g
Operating temperature (T-T)
- -10 - 40 °C
Power Consumption
- 15 mA
Channels Quantity
- 16 channels
Maximum Output Voltage
- 6 V
Digital Input Channels Quality
- 8 channels
Digital Output Channels Quantity
- 8 channels
Module Type
- Digital
Signal Direction
- Input/output
MPN
- C-001T
Brand
- TOA UK
