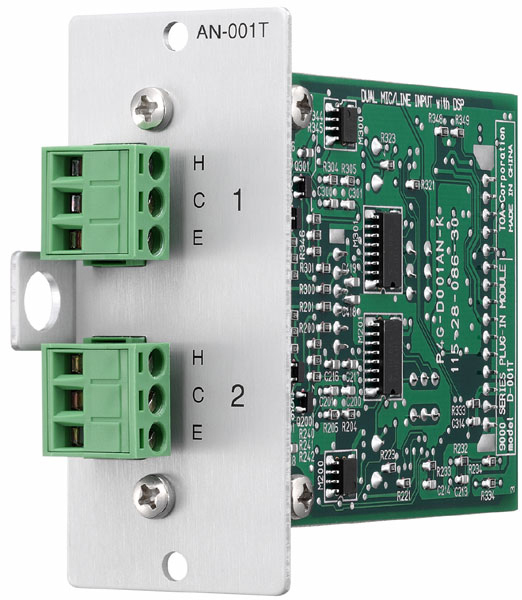

The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (-60 dB) to line level (-10 dB) by controlling the gain in 9 steps. Phantom power (+24 V) can be supplied for condenser microphone use.
Weight
- 82 g
Power supply type
- +24 V DC, -24 V DC, +6 V DC
Operating temperature (T-T)
- -10 - 40 °C
Dimensions (WxDxH)
- 35 x 91.5 x 78 mm
MPN
- AN-001T
Brand
- TOA UK
