System Amplifier

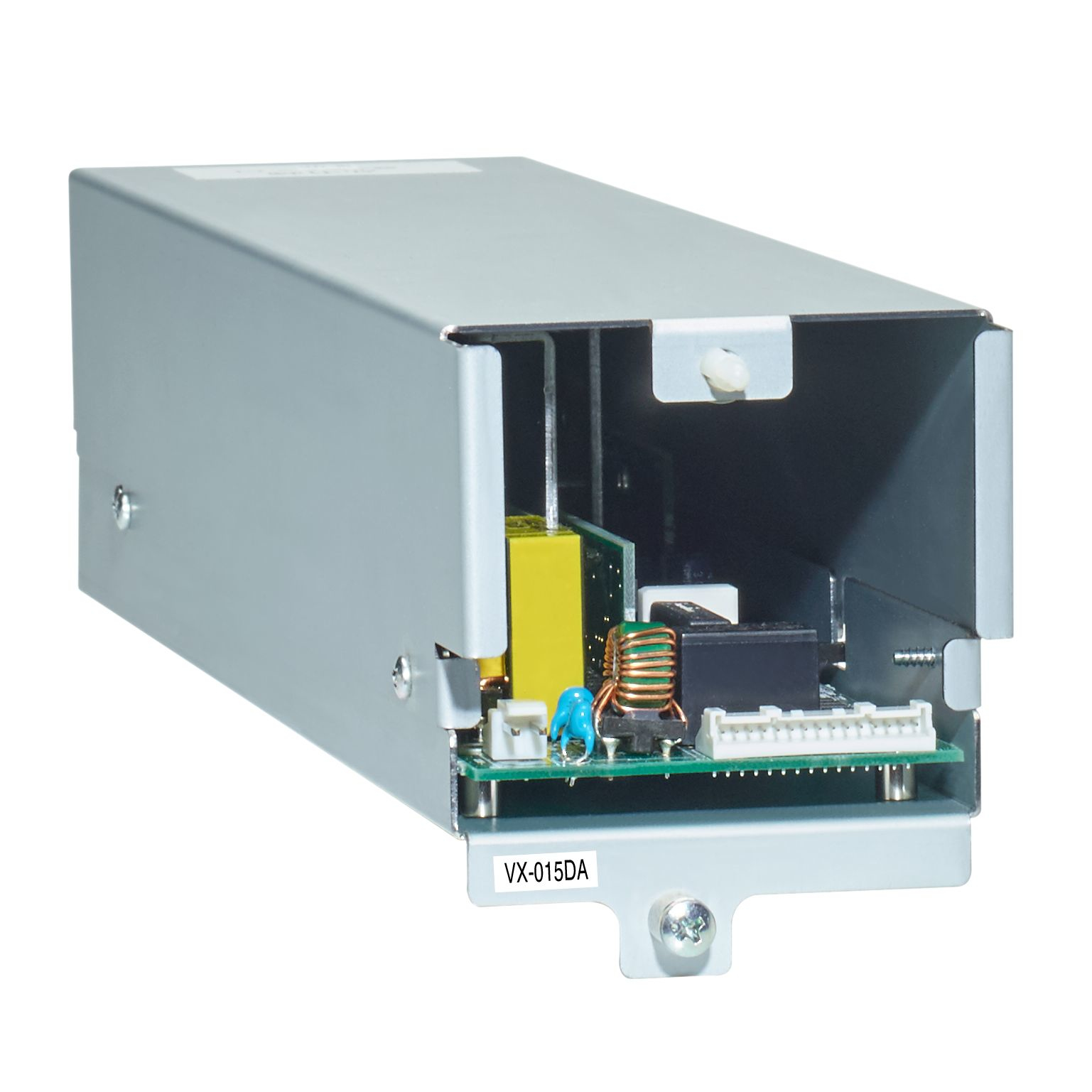

The VX-015DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F andAmplifier module with highly efficient digital class-D amplifier with an output power of 150 watts and internal low-loss voltage converter of advanced switching technology.
- Lightweight through floating speaker line output without transformer.
- Output voltage switchable between 50, 70 and 100 volts.
- Fuse easily accessible from the back.
- Ventilation with easy to clean filter. power supply unit VX-3000DS.
The VX-015DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F andAmplifier module with highly efficient digital class-D amplifier with an output power of 150 watts and internal low-loss voltage converter of advanced switching technology.
- Lightweight through floating speaker line output without transformer.
- Output voltage switchable between 50, 70 and 100 volts.
- Fuse easily accessible from the back.
- Ventilation with easy to clean filter. power supply unit VX-3000DS.
DC Input Voltage
- 31 V
MPN
- VX-015DA
Peak Power Per Channel
- 40 W
Amplifier Class
- D
Signal-to-Noise Ratio (SNR)
- 100 dB
Audio Output Channels
- 1.0 channels
Frequency Range
- 40 - 16000 Hz
Total Harmonic Distortion (THD)
- 1%
DC-In Jack
- Yes
Purpose
- Performance/stage
Connectivity technology
- Wired
Power consumption (standby)
- 1.3 W
Power consumption (typical)
- 150 W
Weight
- 1.4 kg
Depth
- 91 mm
Width
- 79 mm
Height
- 358.2 mm
Product Colour
- Black
Material
- Steel
Brand
- TOA UK
