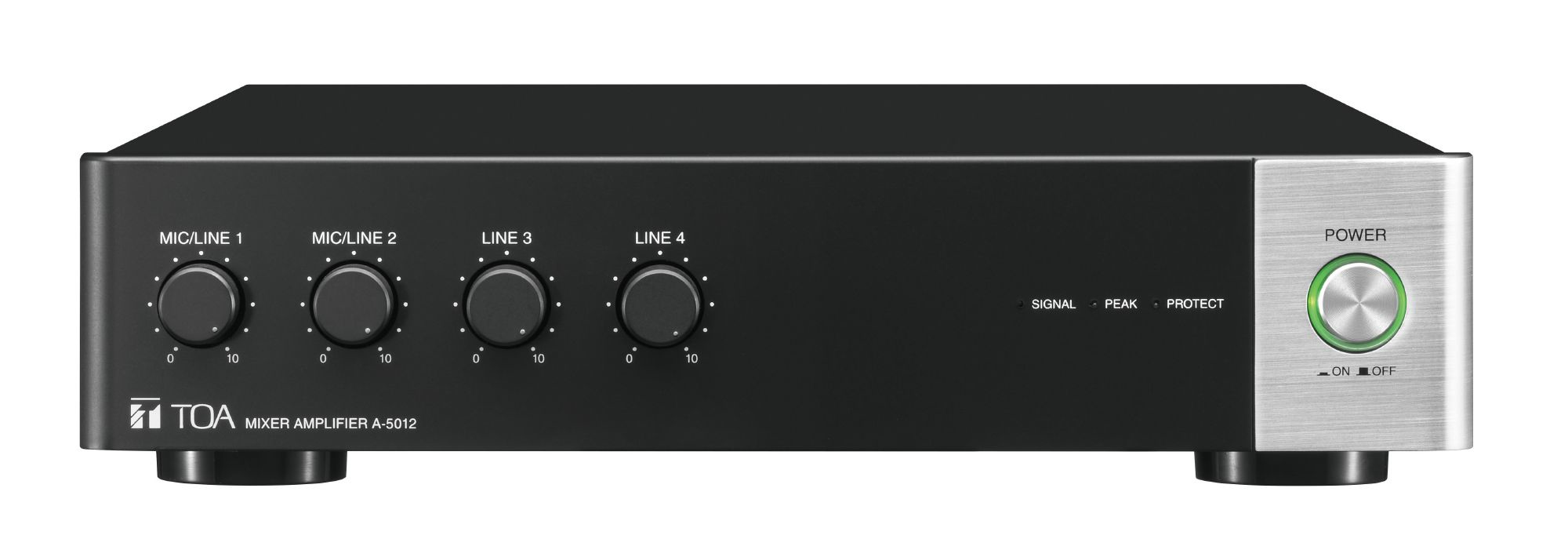

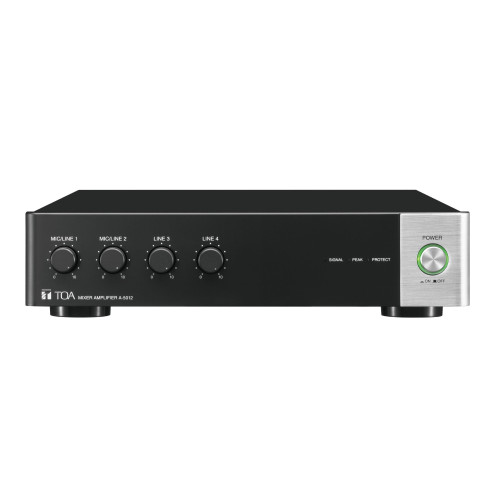

The A-5012 is a half-rack 1-unit size 120 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 ) speaker connections.
Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
LED indicators
- Yes
MPN
- A-5012
Signal-to-Noise Ratio (SNR)
- 70 dB
Channels Quantity
- 1 channels
Maximum Current
- 3 A
Frequency Range
- 50 - 20000 Hz
Total Harmonic Distortion (THD)
- 1%
USB Port Type
- USB Type-B
RMS Rated Power
- 120 W
Microphone In
- Yes
AC Input Frequency
- 50 / 60 Hz
AC Input Voltage
- 100 - 240 V
Ethernet LAN (RJ-45) Ports
- 1
Connectivity technology
- Wired
Cables included
- AC
Wi-Fi
- No
Power consumption (typical)
- 207 W
Built-in display
- No
Weight
- 3.9 kg
Depth
- 375 mm
Width
- 210 mm
Height
- 52.5 mm
Product Colour
- Black, Silver
Material
- Polystyrene, Steel
Brand
- TOA UK
