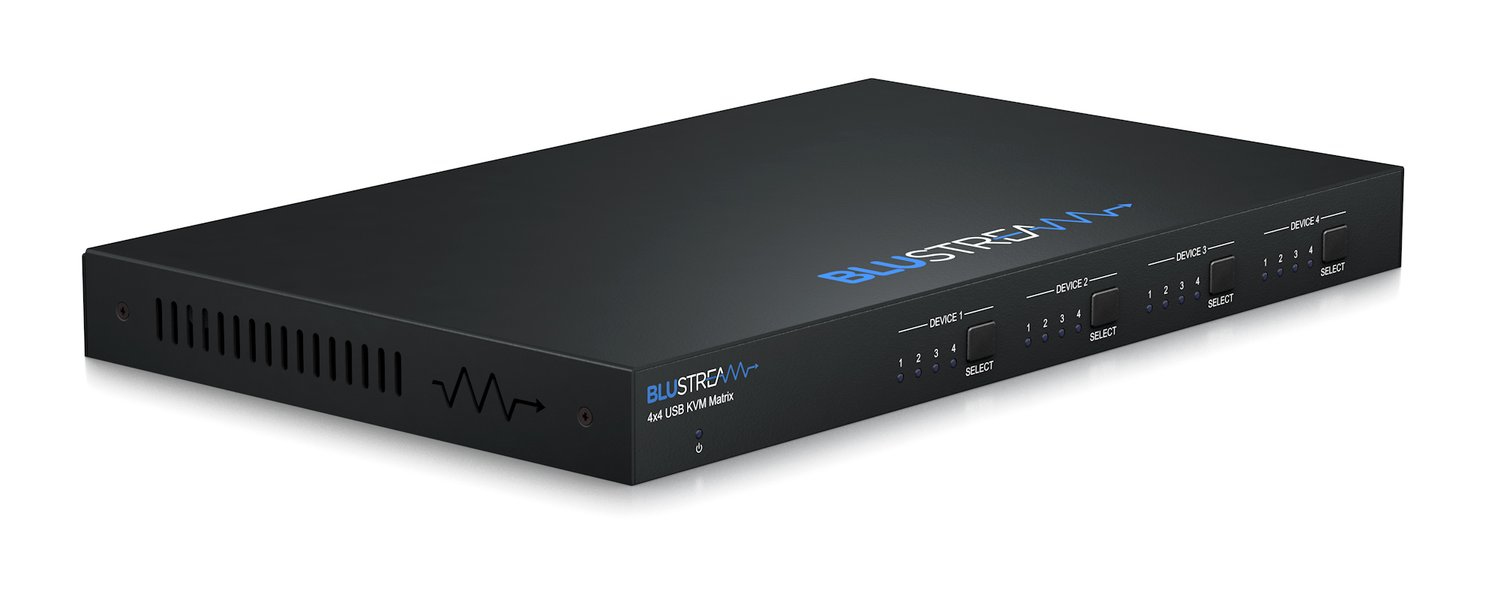

Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.
The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.
The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.
The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.
The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.
Input Voltage
- 24 V
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub Ports Quantity
- 4
Serial Port Type
- RJ-45
Serial Ports Quantity
- 1
Data Transfer Rate (Max)
- 5 Gbit/s
Mouse Port Type
- USB
Keyboard Port Type
- USB
HDCP
- Yes
Plug and Play
- Yes
Power Source
- DC
USB Connector Type
- USB Type-A, USB Type-B
Ethernet LAN (RJ-45) Ports
- 1
Storage temperature (T-T)
- -25 - 70 °C
Ethernet LAN
- Yes
Depth
- 168 mm
Width
- 273 mm
Height
- 25 mm
Product Colour
- Black
Brand
- Blustream
