R.3-HD0270

SKU: AVKORDZ327
MPN: R.3-HD0270
Weight: 1kg
£26.00 Ex VAT
Manufacturer Brand Image

R.3-HD0270

Manufacturer Brand Image

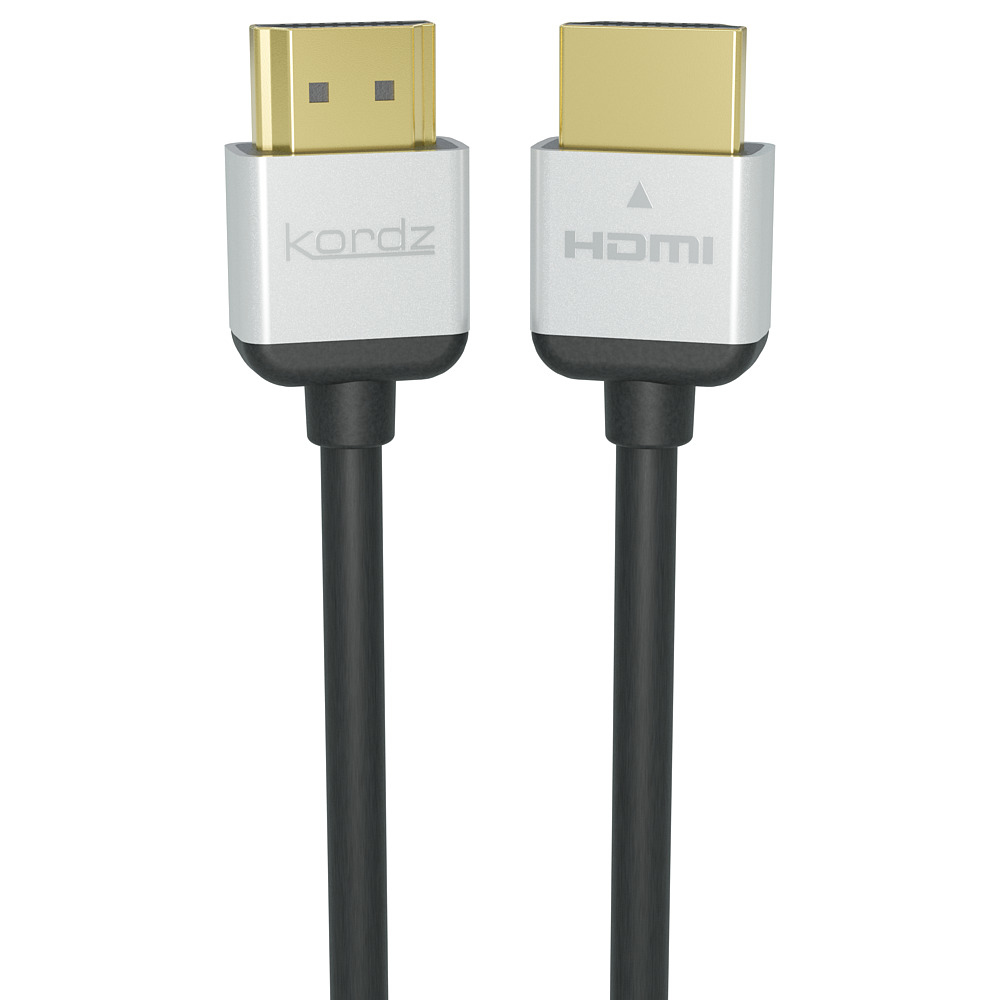

R.3 Series Passive HDMI Cable, 18 Gbps, 32 AWG, 4K 60 Hz 4:4:4, HDR, HDCP 2.2, 2.7 m, Black
SKU: AVKORDZ327
MPN: R.3-HD0270
Weight: 1kg
Unrivalled connectivity never replicated in the market. The world’s most shielded HDMI cable that eliminates signal dropouts with an industry-leading success rate of 99.99%.



Kordz R.3 is our most robust installation HDMI cable, designed for tight spaces and engineered for electrical signal preservation to protect critical HDMI signals amidst high electrical noise environments. A unique combination of advanced features and materials delivers unrivalled installation performance and reliability. High-tech assembly and vacuum infra-red soldering minimise signal drop-outs, while nitrogen foam polyethylene insulation ensures the highest dielectric consistency for digital transmission. With high flexibility and shallow operational depth, the Kordz R.3 HDMI Cable opens new installation design possibilities.

Used in space missions, military and medical settings, and iconic international events, the Kordz R.3 HDMI Cable is a significant component for critical signals and engineered to deliver maximum commercial uptime.
High Dynamic Range (HDR) Supported
  • Yes
Cable Diameter
  • 4.8 mm
HDCP
  • Yes
AWG Wire Size
  • 32
Magnetically Shielded
  • Yes
Maximum Refresh Rate
  • 60 Hz
Supported Video Modes
  • 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
HDCP Version
  • 2.2
Connector 2 Dimensions (WxDxH)
  • 18 x 39.4 x 9.4 mm
Connector 1 Dimensions (WxDxH)
  • 18 x 39.4 x 9.4 mm
Plug and Play
  • Yes
HDMI Ethernet Channel
  • Yes
Connector Material
  • Zinc alloy
Colour Sampling
  • 4:4:4, 4:2:0, 4:2:2
Bending Radius (Min)
  • 2 cm
Audio Return Channel (ARC)
  • Yes
Cable Type
  • Round cable
Shield Material
  • Aluminium
Supported Digital Audio Channels (Uncompressed)
  • 7.1
Tensile Strength
  • 20 N
Connector 2 form factor
  • Straight
Product Colour
  • Black, Steel
Quantity per pack
  • 1 pc(s)
Doesn't contain
  • Halogen
Cable length
  • 2.7 m
Connector 1
  • HDMI Type A (Standard)
Connector 2
  • HDMI Type A (Standard)
Connector 1 gender
  • Male
Connector 2 gender
  • Male
Connector 1 form factor
  • Straight
Data transfer rate
  • 18 Gbit/s
Bandwidth
  • 340 MHz
Cable jacket material
  • Thermoplastic elastomer (TPE)
Connector Contacts Plating
  • Gold
3D
  • Yes
Cable Material
  • Oxygen-Free Copper (OFC)
Supported Graphics Resolutions
  • 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
HDMI Version
  • 2.0
Brand
  • Kordz
