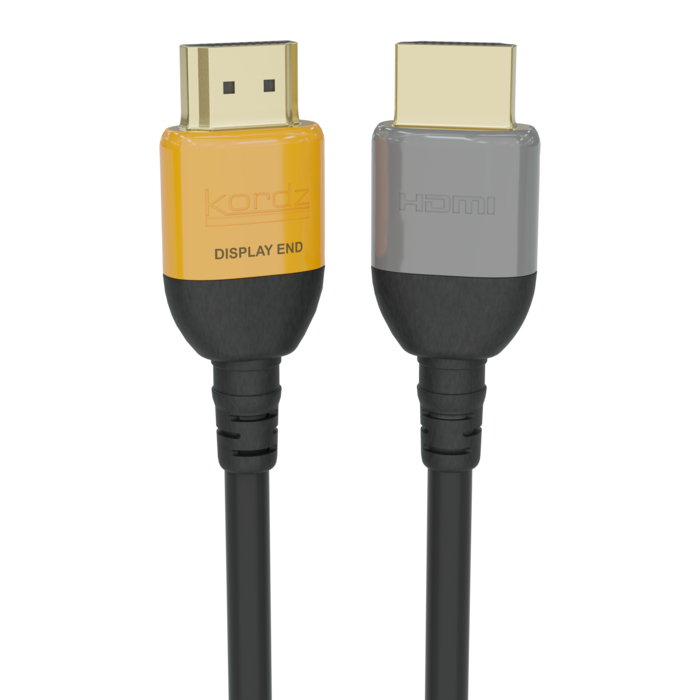

Kordz PRS4 Active Optical HDMI Cables are designed to meet the high demands and rigour of professional integration. The Kordz PRS4 range features cables that are compact, tough and flexible with a 2kg retention force die-cast connector. Kordz PRS4 HDMI Active Optical Cables support the full features and benefits of the latest HDMI technology when using 4K HFR or 8K devices.
High Dynamic Range (HDR) Supported
- Yes
Cable Diameter
- 5.5 mm
HDCP
- Yes
AWG Wire Size
- 32/26
Magnetically Shielded
- Yes
Supported Video Modes
- 720p, 1080p, 2160p, 4320p
Dolby Technologies
- DTS:X, Dolby Atmos, Dolby TrueHD
HDCP Version
- 2.3
Connector 2 Dimensions (WxDxH)
- 20 x 50.9 x 10.7 mm
Connector 1 Dimensions (WxDxH)
- 20 x 50.9 x 10.7 mm
Plug and Play
- Yes
HDMI Ethernet Channel
- Yes
Connector Material
- Zinc alloy
Colour Sampling
- 4:4:4, 4:2:0, 4:2:2
Bending Radius (Min)
- 2 cm
Audio Return Channel (ARC)
- Yes
Cable Type
- Round cable
Shield Material
- Aluminium
Tensile Strength
- 20 N
Data transfer rate
- 48 Gbit/s
Product Colour
- Black, Grey, Orange
Quantity per pack
- 1 pc(s)
Cable length
- 10 m
Connector 1
- HDMI Type A (Standard)
Connector 2
- HDMI Type A (Standard)
Connector 1 gender
- Male
Connector 2 gender
- Male
Connector 1 form factor
- Straight
Connector 2 form factor
- Straight
Bandwidth
- 1200 MHz
Cable jacket material
- Low smoke zero halogen (LSZH)
Compliance Certificates
- RoHS
Sustainability Compliance
- Yes
Connector Contacts Plating
- Gold
3D
- Yes
Cable Material
- Copper
Supported Graphics Resolutions
- 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320, 10240 x 4320
Brand
- Kordz
