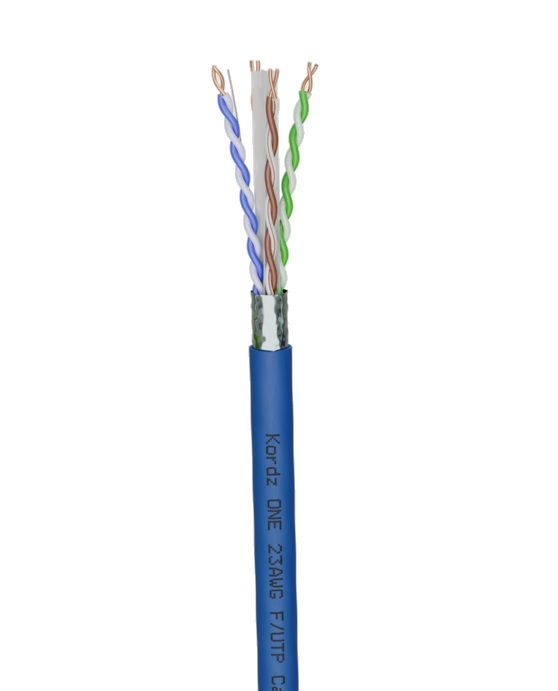

Kordz ONE Series CAT 6A F/UTP premium cable is engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT 6A F/UTP cable is tested and approved to exceed 550Mhz, ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards.
Power over Ethernet (PoE)
- Yes
Power over Ethernet (PoE) Type Supported
- PoE+
Cable Shape
- Round
Bend Radius (Min)
- 2.96 cm
Cable Type
- Cable on reel
Outer Diameter
- 7.4 mm
Conductor Type
- Solid
Jacket Material
- Low smoke zero halogen (LSZH)
Frequency
- 550 MHz
Conductor Material
- Oxygen-Free Copper (OFC)
Cable Standard
- Cat6a
Cable Shielding
- F/UTP (FTP)
AWG Wire Size
- 23
Cabling Technology
- 10/100/1000Base-T(X)
Sustainability Compliance
- Yes
Compliance Certificates
- RoHS
Certification
- ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25
Storage temperature (T-T)
- -20 - 60 °C
Operating temperature (T-T)
- 0 - 50 °C
Package weight
- 9.8 kg
Connector 2 gender
- No
Connector 1 gender
- No
Connector 2
- No
Connector 1
- No
Cable length
- 152 m
Package height
- 340 mm
Package depth
- 265 mm
Package width
- 330 mm
Quantity per pack
- 1 pc(s)
Product Colour
- Blue
Brand
- Kordz
