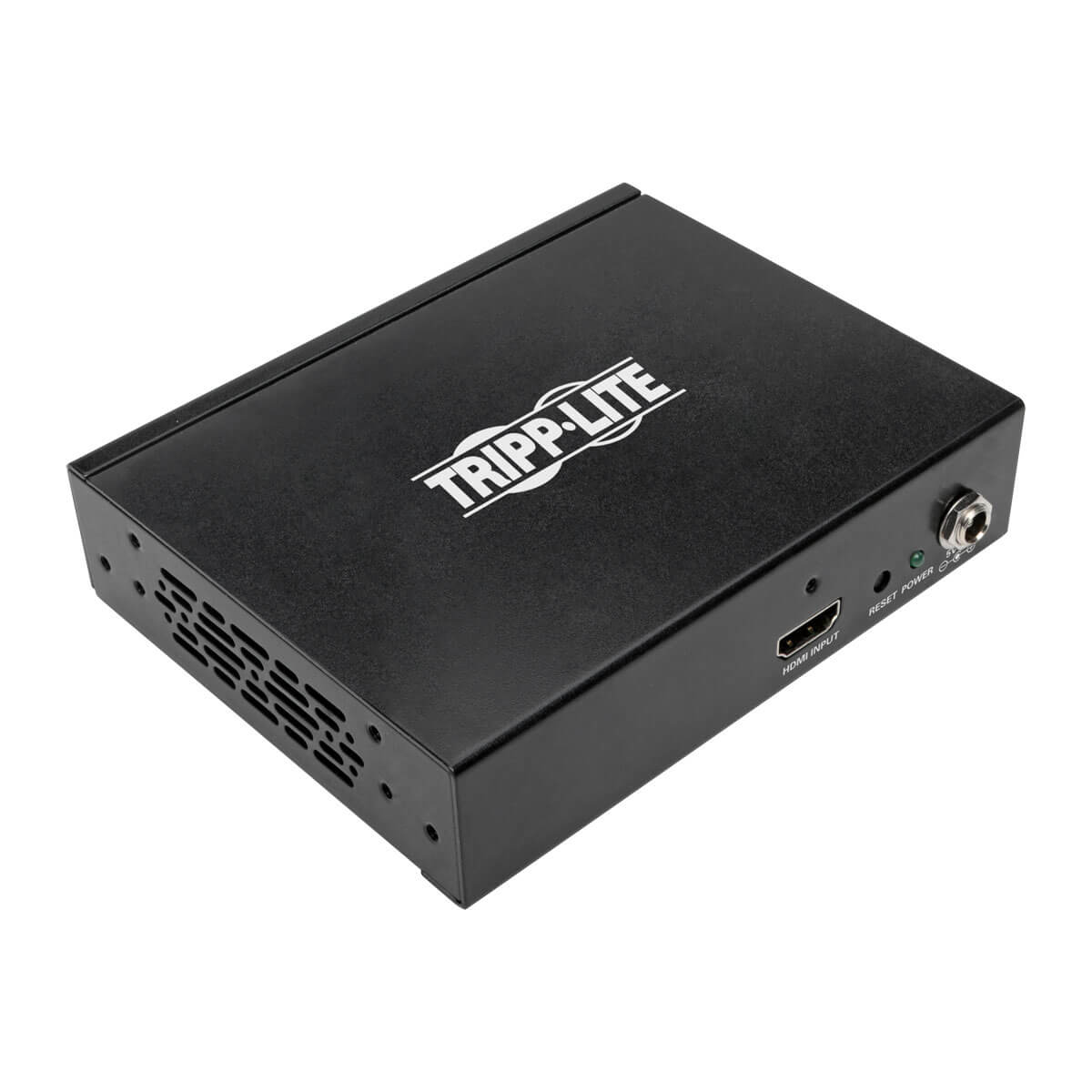

Transmits a 4K HDMI A/V Signal to 4 HDMI Displays Simultaneously
Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable
Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video
Supports HDCP 2.2 and EDID compliant to ensure compatibility with latest A/V hardware
Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 64
Supports the Most Up-To-Date Features and Formats
Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
Full 3D
DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
36-bit Deep Color (12 bits per channel)
Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
Lip sync pass-through, xvYCC and x.vColor
Easy to Use Almost Anywhere
Plug-and-play operation with no software required for easy, immediate installation
Supports desktop use or wall-mounting using included hardware
Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable
Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video
Supports HDCP 2.2 and EDID compliant to ensure compatibility with latest A/V hardware
Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 64
Supports the Most Up-To-Date Features and Formats
Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
Full 3D
DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
36-bit Deep Color (12 bits per channel)
Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
Lip sync pass-through, xvYCC and x.vColor
Easy to Use Almost Anywhere
Plug-and-play operation with no software required for easy, immediate installation
Supports desktop use or wall-mounting using included hardware
Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Connector Contacts Plating
- Nickel
MPN
- B118-004-UHD-2
Master (Outer) Case GTIN (EAN/UPC)
- 10037332200652
Colour Depth
- 36 bit
Video Ports Quantity
- 4
Video Out
- 4x HDMI
Dolby Technologies
- DTS-HD, Dolby Digital Plus, Dolby TrueHD
Input Current
- 5 A
Maximum Refresh Rate
- 60 Hz
HDCP
- Yes
HDMI Version
- 2.0
Supported Graphics Resolutions
- 3840 x 2160
3D
- Yes
Video Port Type
- HDMI
Output Voltage
- 2 V
AC Adapter Included
- Yes
AC Input Frequency
- 50 - 60 Hz
AC Input Voltage
- 100-240 V
Package weight
- 630 g
Harmonized System (HS) code
- 85176990
Country of origin
- Taiwan
Package height
- 55.1 mm
Package depth
- 164.1 mm
Package width
- 214.1 mm
Product Colour
- Black
Brand
- Tripp Lite
