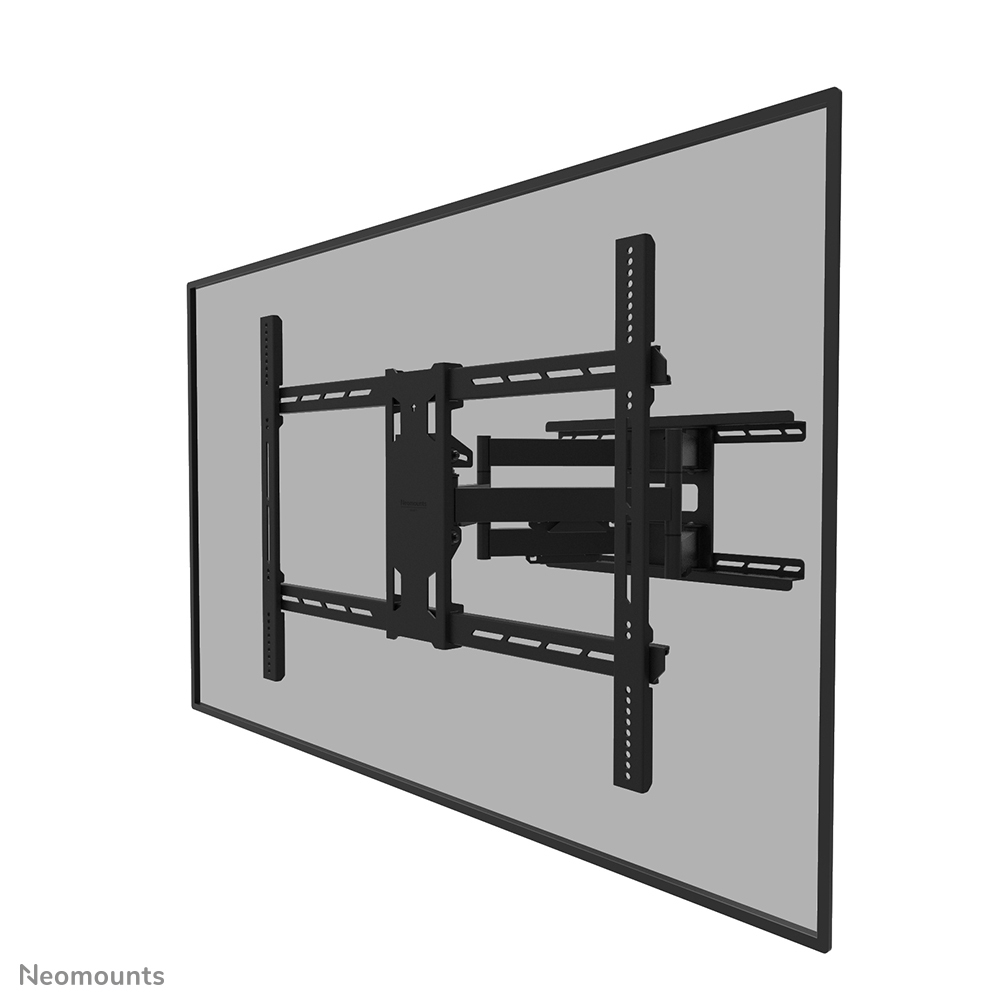

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.\nThe WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.\nThe mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Width
- 880 mm
Package depth
- 100 mm
Package height
- 950 mm
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 22 kg
Swivel angle range
- -45 - 45°
Height
- 630 mm
Distance to the wall (max)
- 70.3 cm
Package width
- 450 mm
Depth
- 82 mm
Distance to the wall (min)
- 8.2 cm
Warranty period
- 5 year(s)
Suitable for TV
- Yes
Mounting kit
- Yes
Pivot angle
- -3 - 3°
MPN
- WL40S-950BL18
Height adjustment range
- 0 - 10 mm
Cable Management
- Yes
Maximum weight capacity
- 125 kg
Maximum screen size
- 2.79 m (110")
Mounting type
- Wall
Minimum screen size
- 139.7 cm (55")
Number of displays supported
- 1
Panel mounting interface
- 300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Height adjustment
- Yes
Tilt adjustment
- Yes
Tilt angle range
- -5 - 15°
Swivelling
- Yes
Rotating
- Yes
Angle of rotation
- 6°
Product Colour
- Black
Housing material
- Steel
Brand
- NEOMOUNTS
