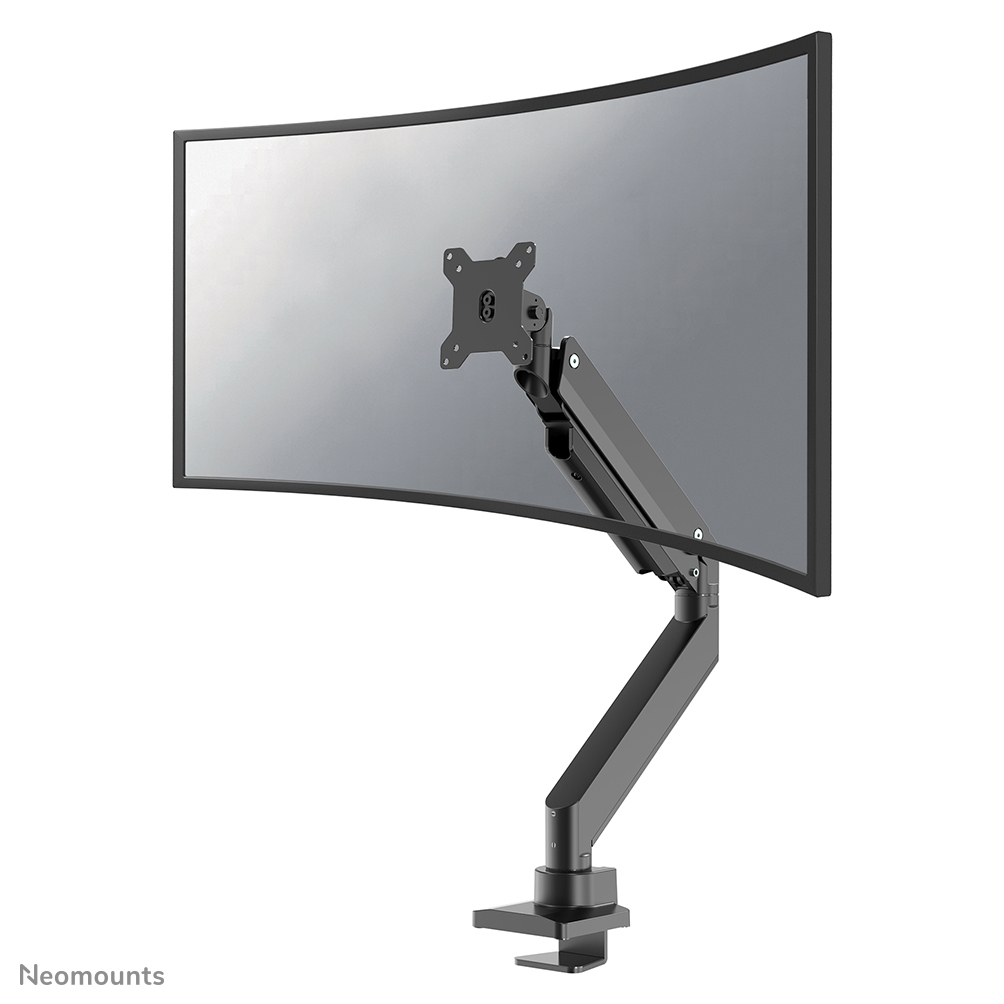

The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.\nThe NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg. \nNeomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres. \nA unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.\nAll installation material is included with the product.
Minimum weight
- 1 kg
Swivel angle
- 360°
Rotating
- Yes
Angle of rotation
- 180°
Product Colour
- Black
Housing material
- Steel
Package width
- 240 mm
Package depth
- 123 mm
Package height
- 555 mm
Swivelling
- Yes
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 5.2 kg
Desk thickness (min)
- 1 cm
Height
- 600 mm
Depth
- 630 mm
Maximum weight capacity (per curved/ultra-wide display)
- 14 kg
Desk thickness (max)
- 4.5 cm
Cable Management
- Yes
Maximum weight capacity
- 18 kg
Maximum screen size
- 124.5 cm (49")
Mounting type
- Desk
Minimum screen size
- 25.4 cm (10")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Height adjustment
- Yes
Height adjustment type
- Gas spring
Height adjustment range
- 270 - 600 mm
Adjustable depth
- Yes
Depth adjustment range
- 0 - 630 mm
Tilt adjustment
- Yes
Tilt angle range
- -45 - 45°
Brand
- Neomounts
